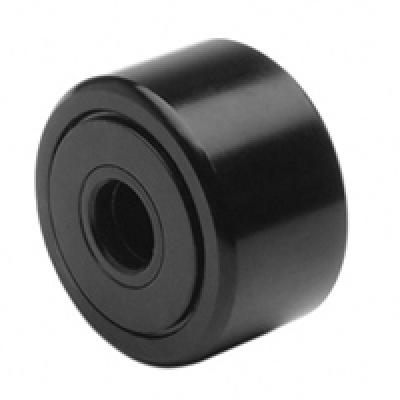

YR-5-X
Price $ 73.85
Number
| Part Number | YR-5-X |
Brand: LILY  | |
Equivalent: SMITH |
| System of Measurement | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Full Complement |
| Type | Yoke Type |
| Seal Type | Sealed |
| Series | Yoke Type Industrial Cam Followers |
| Roller Material | Bearing Steel |
| Roller Dia | 5.000" |
| Roller Width | 2.750" |
| Yoke Bore Dia | 1.750" |
| Overall Width | 2.875" |
| Shoulder Dia | 3 |
| Static Radial Load | 136000 lbs |
| Dynamic Radial Load | 49750 lbs |
| RoHS | Compliant |
| REACH | Compliant |
| Recomm Shaft Dia Press Fit Max | 1.7508 |
| Recomm Shaft Dia Press Fit Min | 1.7503 |
| Recomm Shaft Dia Slip Fit Max | 1.7496 |
| Recomm Shaft Dia Slip Fit Min | 1.7491 |
})
