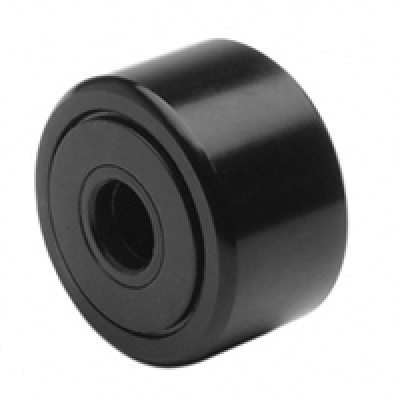

YR-1-5/8
Price $ 10.15
Number
Part Number | YR-1-5/8 |
Brand: LILY | |
Equivalent: SMITH |
System of Measurement | Inch |
For Load Direction | Radial |
Roller Shape | Cylindrical |
Internal Construction | Full Complement |
Type | Yoke Type |
Seal Type | Unsealed |
Series | Yoke Type Industrial Cam Followers |
Roller Material | Bearing Steel |
Roller Dia | 1.625" |
Roller Width | 0.875" |
Yoke Bore Dia | 0.4375" |
Overall Width | 0.9375" |
Shoulder Dia | 57/64 |
Static Radial Load | 11300 lbs |
Dynamic Radial Load | 5560 lbs |
RoHS | Compliant |
REACH | Compliant |
Recomm Shaft Dia Press Fit Max | .4380 |
Recomm Shaft Dia Press Fit Min | .4376 |
Recomm Shaft Dia Slip Fit Max | .4372 |
Recomm Shaft Dia Slip Fit Min | .4368 |
