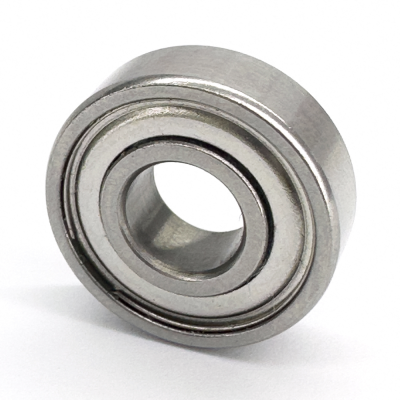

S624zz Stainless Steel Bearings
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | S624zz Stainless Steel Bearings |
|
Ring Material
|
|
| Cage Material |
|
| Balls Material |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Inner Ring Type | Standard |
| Seal Type | Shielded |
| Bore Dia | 4 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 13 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width | 5 mm |
| Width Tolerance | -0.12mm to 0 |
| Shield Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 224 lbf |
| Static Radial Load | 79 lbf |
| Max Speed (X1000 rpm) | 36 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC1 |
| Radial Clearance Trade No | MC3 |
| Radial Clearance | 0.002mm to 0.013mm |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 2.381 mm |
| Ball Qty | 7 |
| Weight | 3.2 g |
