MCF 22 SX

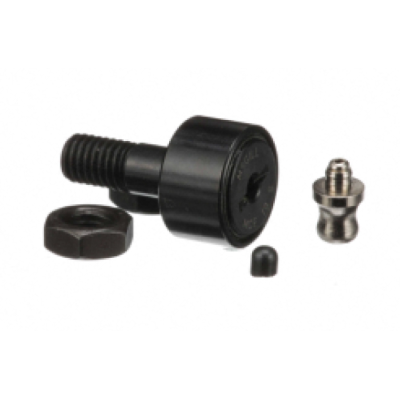

MCF 22 SX Stud Type Rollers
Part Number MCF 22 SX
Brand: LILY
|
Equivalent: McGill
System of Measurement Metric
For Load Direction Radial
Roller Shape Cylindrical
Internal Construction Full Complement
Type Standard Stud
Mounting Method Screwdriver Slot
Seal Type Sealed
Platform Camrol
Roller Material Bearing Steel
Roller Dia 22 mm
Roller Width 12 mm
Stud Dia 10 mm
Stud Length 23 mm
Threads M10x1
Minimum Thread Length 12 mm
Shoulder Dia 15 mm
Shoulder Length 0.6 mm
Overall Length 36 mm
Lubrication Fitting Size 4 mm
Lubrication Hole Location Stud side
Clamping Torque 15 nm
Max Speed 9000
Static Radial Load 2338 lbf
Dynamic Radial Load 2115 lbf
RoHS Compliant
REACH Compliant
Weight 0.56 LB
