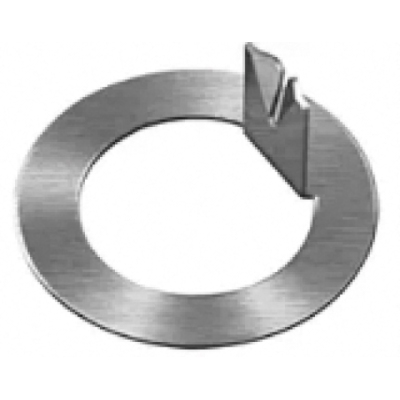

90407A126
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | JAEAHABCG |
| System of Measurement | Metric |
| Material | Steel |
| For Screw Size | M35 |
| ID | 35 mm |
| OD | 55 mm |
| Thickness | 1.200 mm |
| Tab Width | 7 mm |
| Tab Depth | 2.5 mm |
| Overall Height | 5 mm |
| Washer Type | Spring Lock |
| Spring Lock Washer Shape | Conical |
| Hardness | Not Rated |
| Specifications Met | DIN 462 |
| For Bearing Nut Face Style | Stepped |
| For Bearing Nut Specifications Met | DIN 1804 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | China |
