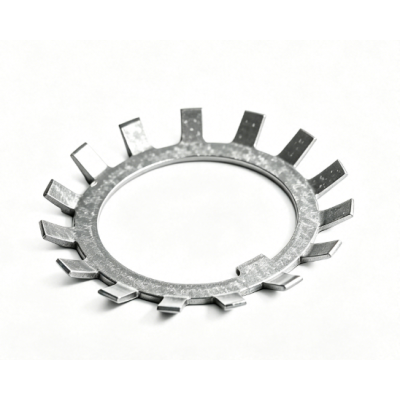

90391A133
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | JADJBABDD |
| System of Measurement | Metric |
| Material | Steel |
| For Screw Size | M100 |
| ID | 100 mm |
| OD | 142 mm |
| Thickness | 1.750 mm |
| Tab Width | 12 mm |
| Tab Depth | 3.5 mm |
| Overall Height | 7 mm |
| Washer Type | Spring Lock |
| Tooth Location | External |
| Spring Lock Washer Shape | Conical |
| Hardness | Not Rated |
| Specifications Met | DIN 5406 |
| For Bearing Nut Face Style | Chamfered |
| For Bearing Nut Specifications Met | DIN 981 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| DFARS | Not Specialty Metals Compliant |
| Country of Origin | China |
