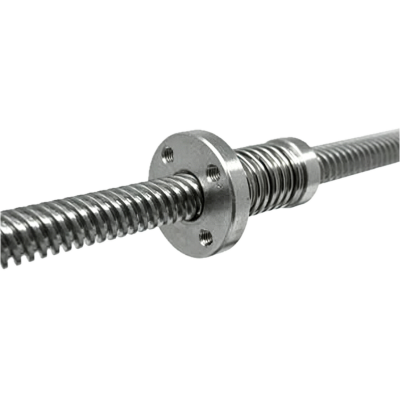

7549K64
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | HFEJKGE |
| System of Measurement | Metric |
| Component | Nut |
| Nut Type | Flange |
| Thread Direction | Right Hand |
| Material | Acetal Plastic |
| Flange Material | Acetal Plastic |
| Thread Size | M8 |
| Thread Pitch | 1.5 mm |
| Length | 0.75" |
| Diameter | 0.548000" |
| Flange Diameter | 1.125000" |
| Flange Thickness | 0.187500" |
| Number of Thread Starts | 1 |
| Thread Type | Metric Rounded Trapezoidal |
| Speed Ratio | 1:1 |
| Travel Distance per Turn | 1.5 mm |
| Number of Mounting Holes | 3 |
| Mounting Hole Dia | 0.140625" |
| Bolt Circle Dia | 0.875000" |
| Hardness | Not Rated |
| Flange Hardness | Not Rated |
| Tensile Strength | 8000 psi |
| Dynamic Thrust Load Capacity | 75 lbs |
| Temperature Range, °F Min. | -40 ° |
| Temperature Range, °F Maximum | 185 ° |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| Country of Origin | China |
