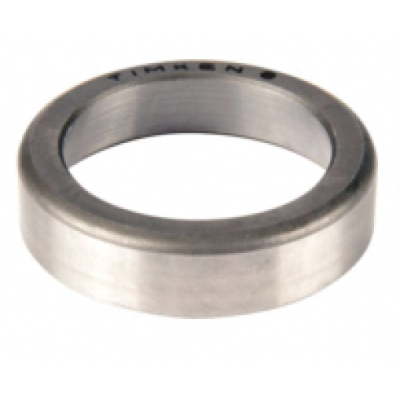

H247510
| Part Number | H247510 |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Inch |
| Type | Cups |
| Bearing Part Number | H247535-H247510 , H247536-H247510 , H247540-H247510 , H247545WS-H247510 , H247548-H247510 , H247549-H247510 , H247549WS-H247510 |
| Cups Type | Standard |
| Series | H247500 |
| Outer Dia | 15.125" |
| Outer Dia Tolerance | +0.002" to 0 |
| Cup Width | 3.5625" |
| Cup Width Tolerance | +0.002" to -0.01 |
| Cup Backface ToClear Radius | 0.25" |
| Cup Frontface Backing Diameter | 14.32" |
| Cup Backface Backing Diameter | 13.62" |
| Ring Material | Chrome Steel |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| RoHS | Compliant |
| REACH | Compliant |
})
