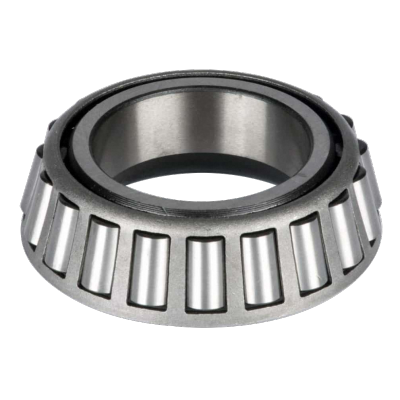

EE280720X
| Part Number | EE280720X |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Inch |
| Type | Cones |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Seal Type | Open |
| Series | 280000 |
| Bore Dia | 7.2047" |
| Bore Dia Tolerance | +0.001" to 0 |
| Cone Width | 2.7207" |
| Cone Width Tolerance | +0.003" to -0.01 |
| Cone Backface ToClear Radius | 0.26" |
| Cone Frontface Backing Diameter | 7.76" |
| Cone Backface Backing Diameter | 8.27" |
| Cage Cone Frontface Clearance | 0.04" |
| Cage Cone Backface Clearance | 0.6" |
| Effective Center Location | -0.48" |
| Ring Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 133000 lbf |
| Static Radial Load | 195000 lbf |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 34500 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) | 231000 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 21200 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) | 60000 lbf |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
})
