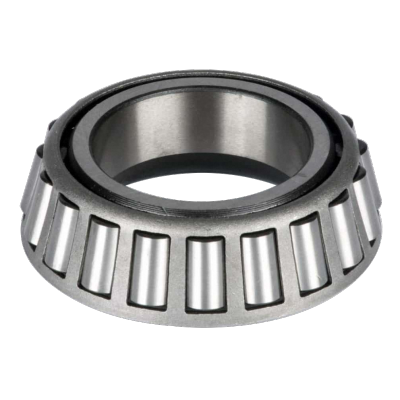

EE125095
| Part Number | EE125095 |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Inch |
| Type | Cones |
| Bearing Part Number | EE125095-125145 |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Seal Type | Open |
| Series | 125000 |
| Bore Dia | 9.5" |
| Bore Dia Tolerance | +0.001" to 0 |
| Cone Width | 2.6875" |
| Cone Width Tolerance | +0.003" to -0.01 |
| Cone Backface ToClear Radius | 0.25" |
| Cone Frontface Backing Diameter | 10.12" |
| Cone Backface Backing Diameter | 10.59" |
| Cage Cone Frontface Clearance | 0.06" |
| Cage Cone Backface Clearance | 0.28" |
| Effective Center Location | -0.09" |
| Ring Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 190000 lbf |
| Static Radial Load | 345000 lbf |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 49200 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) | 330000 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 28900 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) | 85700 lbf |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
