DX281287-DX866264

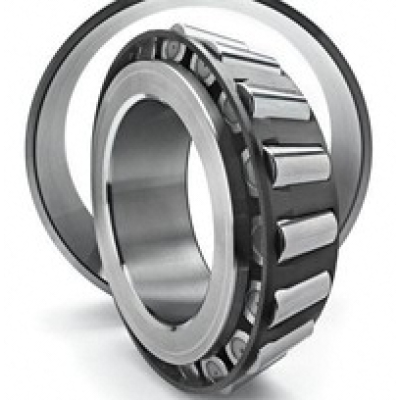

DX281287-DX866264 TS (Tapered Single Roller Bearings) (Imperial)
Part Number DX281287-DX866264
Brand: LILY
|
Equivalent: Timken
System of Measurement Inch
Type Bearing
Cone Part Number DX281287
Cup Part Number DX866264
Bearing Type Roller
Roller Bearing Type Tapered Roller
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series DX
Bore Dia 9.75"
Bore Dia Tolerance +0.001" to 0
Outer Dia 16"
Outer Dia Tolerance +0.002" to 0
Cone Width 4.875"
Cone Width Tolerance +0.003" to -0.01
Cup Width 3.6875"
Cup Width Tolerance +0.002" to -0.01
Width 4.5625"
Width Tolerance +0.014" to -0.01"
Cone Backface ToClear Radius 0.25"
Cup Backface ToClear Radius 0.250"
Cone Frontface Backing Diameter 12.06"
Cone Backface Backing Diameter 11.3"
Cup Frontface Backing Diameter 15.10"
Cup Backface Backing Diameter 14.41"
Cage Cone Frontface Clearance 0.03"
Cage Cone Backface Clearance 0.32"
Effective Center Location -1.13"
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 608000 lbf
Static Radial Load 816000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 158000 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 89800 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 132.80 lb

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)

DX281287-DX866264 TS (Single Row Tapered Roller Bearings) (Imperial) consist of a tapered inner ring assembly and an outer ring. DX281287-DX866264 bore dia is 9.75". Its out dia is 16". DX281287-DX866264 roller material is Chrome Steel. Its seal type is Open. The DX281287-DX866264 TS (Single Row Tapered Roller Bearings) (Imperial) can bear both radial and axial loads with ease and provides low friction during operation even under the most severe conditions.


Typical applications include:

Gearing Systems and Transmissions, Thermal Power Coal Transporters, Port Equipment, Rubber and other Industrial applications, Machine Tool Spindles, Gear Reducer, Automotive Drive Axle, Aircraft wheels, Agricultural Wheels, Tensioning Roller, Raking Machine, Single Row and Mining Equipment, Railroad Axle-box, etc.


General Selection Factors

Several factors must be considered for choosing tapered roller bearings. These factors include the roller material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, radial clearance, and lubricant, etc.
