Cam Followers

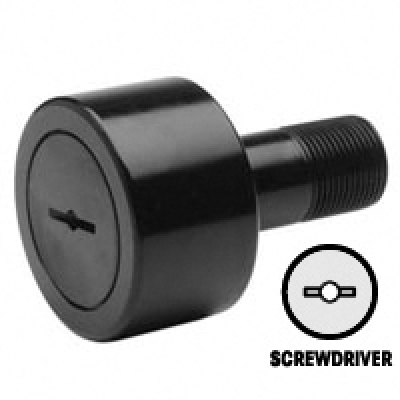

CR-3/4-X Cam Followers

LILY Interchangeable From Smith
CR-3/4-X Cam Followers
Price Not yet
Product NumberCR-3/4-X
Part NumberCR-3/4-X
Roller Dia0.750"
Roller Width0.500"
Stud Dia0.375"
Stud Length0.875"
Dynamic Load Rating2140 lbs
(S) Eff. Thread Min.3/8
(A) Stud Dia. Tolerance+.001/-.000
(B) Roller Width Tolerance+.000/-.005
(D) Roller O.D. Tolerance+.000/-.001
(E) Min. Boss Dia.1/2
(H) Oil Hole Dia.3/32
(N) Oil Hole Location1/4
(P) Lube Fitting Size3/16
(T) Thread U.N.F. Class 2A3/8-24
Max. Static Capacity (lbs)2260
Recom. Bore.3750
Recom. Bore ToleranceN/A
Recom. Torque (lbs-in)120
CR-3/4-X Cam Followers
