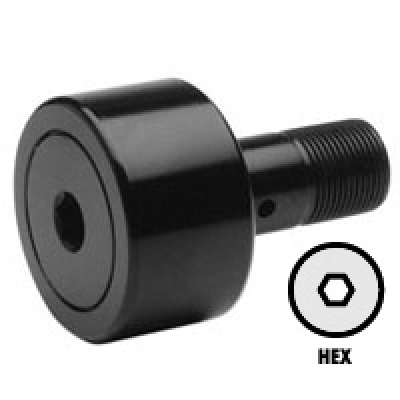

CR-3-1/4-B
Price $ 53.08
Number
| Part Number | CR-3-1/4-B |
Brand: LILY  | |
Equivalent: SMITH |
| System of Measurement | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Full Complement |
| Type | Standard Stud |
| Mounting Method | Hex Hole |
| Seal Type | Unsealed |
| Series | Stud Type Industrial Cam Followers |
| Roller Material | Bearing Steel |
| Roller Dia | 3.250" |
| Roller Width | 1.750" |
| Stud Dia | 1.250" |
| Stud Length | 2.500" |
| Threads | 1-1/4-12 |
| Minimum Thread Length | 1-1/4 |
| Shoulder Dia | 1-3/4 |
| Lube Fitting Size | 1/4 |
| Lubrication Fitting Size | 1/4 |
| Lubrication Hole Location | 5/8 |
| Clamping Torque | 5000 lbf |
| Static Radial Load | 25260 lbs |
| Dynamic Radial Load | 20200 lbs |
| RoHS | Compliant |
| REACH | Compliant |
| Recom Bore | 1.2500 |
})
