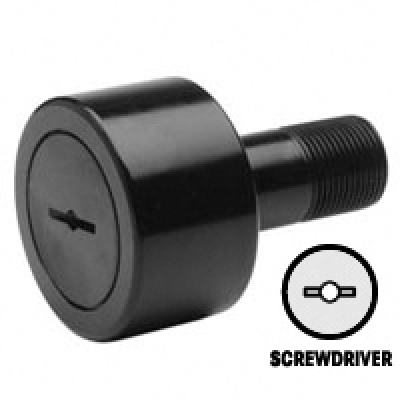

CR-3-1/2
Price $ 64.62
Number
| Part Number | CR-3-1/2 |
Brand: LILY  | |
Equivalent: SMITH |
| System of Measurement | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Full Complement |
| Type | Standard Stud |
| Mounting Method | Screwdriver Slot |
| Seal Type | Unsealed |
| Series | Stud Type Industrial Cam Followers |
| Roller Material | Bearing Steel |
| Roller Dia | 3.500" |
| Roller Width | 2.000" |
| Stud Dia | 1.375" |
| Stud Length | 2.750" |
| Threads | 1-3/8-12 |
| Minimum Thread Length | 1-3/8 |
| Shoulder Dia | 2 |
| Lube Fitting Size | 1/4 |
| Lubrication Fitting Size | 1/4 |
| Lubrication Hole Location | 11/16 |
| Clamping Torque | 6000 lbf |
| Static Radial Load | 31800 lbs |
| Dynamic Radial Load | 29660 lbs |
| RoHS | Compliant |
| REACH | Compliant |
| Recom Bore | 1.3750 |
| Recom Bore Tolerance | +.0005/-.0000 |
})
INTERCHANGE
The LILY bearing part series CR-3-1/2 is a potential replacement for these common bearing part numbers.
LILY
RBC
SMITH
McGill
TORRINGTON
LCR-3-1/2
S112
CR-3-1/2
CF 3 1/2
CR – 56
