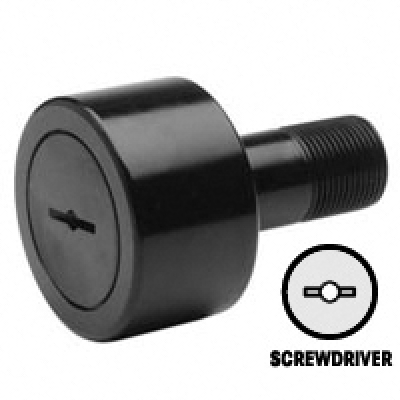

CR-2-1/2
Price $ 30.00
Number
Part Number | CR-2-1/2 |
Brand: LILY | |
Equivalent: SMITH |
System of Measurement | Inch |
For Load Direction | Radial |
Roller Shape | Cylindrical |
Internal Construction | Full Complement |
Type | Standard Stud |
Mounting Method | Screwdriver Slot |
Seal Type | Unsealed |
Series | Stud Type Industrial Cam Followers |
Roller Material | Bearing Steel |
Roller Dia | 2.500" |
Roller Width | 1.500" |
Stud Dia | 1.000" |
Stud Length | 2.250" |
Threads | 1-14 |
Minimum Thread Length | 1-1/8 |
Shoulder Dia | 1-5/16 |
Lube Fitting Size | 3/16 |
Lubrication Fitting Size | 5/32 |
Lubrication Hole Location | 9/16 |
Clamping Torque | 3000 lbf |
Static Radial Load | 16650 lbs |
Dynamic Radial Load | 15280 lbs |
RoHS | Compliant |
REACH | Compliant |
Recom Bore | 1.0000 |
Recom Bore Tolerance | +.0005/-.0000 |
INTERCHANGE
The LILY bearing part series CR-2-1/2 is a potential replacement for these common bearing part numbers.
LILY
RBC
SMITH
McGill
TORRINGTON
LCR-2-1/2
S80
CR-2-1/2
CF 2 1/2
CR – 40
