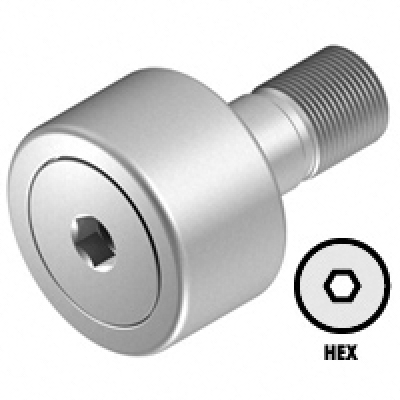

CR-2-1/2-XB-SS
$229.83
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
| Part Number | CR-2-1/2-XB-SS |
Brand: LILY  |
Interchangeable With: SMITH |
| System of Measurement | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Full Complement |
| Type | Standard Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Roller Material | Stainless Steel |
| Roller Dia | 2.5" |
| Roller Width | 1.5" |
| Stud Dia | 1" |
| Stud Length | 2.25" |
| Threads | 1-14 |
| Minimum Thread Length | 1.125000" |
| Shoulder Dia | 1.312500" |
| Hex Socket | 1/2 |
| Lube Fitting Size | 3/16 |
| Lubrication Fitting Size | 0.156250" |
| Lubrication Hole Location | 9/16 |
| Dynamic Radial Load | 7959 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Recom Bore | 1 |
| Recom Bore Tolerance | +.0005/-.0000 |
