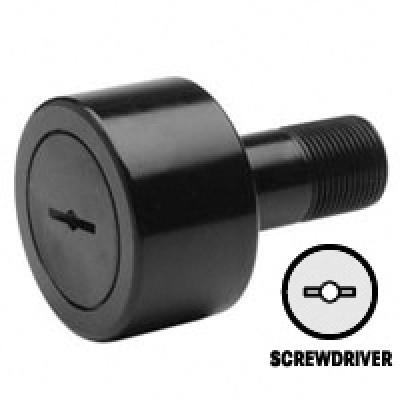

CR-1/2
Price $ 11.54
Number
| Part Number | CR-1/2 |
Brand: LILY  | |
Equivalent: SMITH |
| System of Measurement | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Full Complement |
| Type | Standard Stud |
| Mounting Method | Screwdriver Slot |
| Seal Type | Unsealed |
| Series | Stud Type Industrial Cam Followers |
| Roller Material | Bearing Steel |
| Roller Dia | 0.500" |
| Roller Width | 0.375" |
| Stud Dia | 0.190" |
| Stud Length | 0.625" |
| Threads | 10-32 |
| Minimum Thread Length | 1/4 |
| Shoulder Dia | 19/64 |
| Lube Fitting Size | 1/8 |
| Lubrication Fitting Size | N/A |
| Lubrication Hole Location | N/A |
| Clamping Torque | 20 lbf |
| Static Radial Load | 720 lbs |
| Dynamic Radial Load | 970 lbs |
| RoHS | Compliant |
| REACH | Compliant |
| Recom Bore | .1900 |
| Recom Bore Tolerance | +.0005/-.0000 |
})
INTERCHANGE
The LILY bearing part series CR-1/2 is a potential replacement for these common bearing part numbers.
LILY
RBC
SMITH
McGill
TORRINGTON
LCR-1/2
S16
CR-1/2
CF 1/2
CR – 8-1
