CR-1-1/8-X

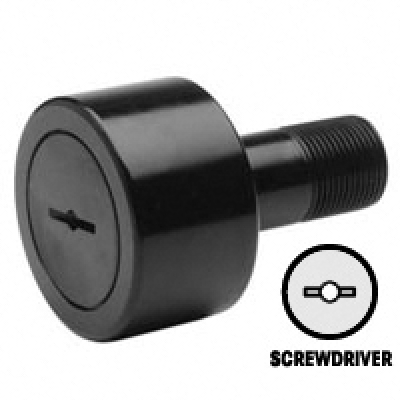

CR-1-1/8-X Stud Style Inch Cam Followers
Price $ 9.23
Number
Part Number CR-1-1/8-X
Brand: LILY
|
Equivalent: SMITH
System of Measurement Inch
For Load Direction Radial
Roller Shape Cylindrical
Internal Construction Full Complement
Type Standard Stud
Mounting Method Screwdriver Slot
Seal Type Sealed
Series Stud Type Industrial Cam Followers
Roller Material Bearing Steel
Roller Dia 1.125"
Roller Width 0.625"
Stud Dia 0.4375"
Stud Length 1.000"
Threads 7/16-20
Minimum Thread Length 1/2
Shoulder Dia 5/8
Lube Fitting Size 3/16
Lubrication Fitting Size 3/32
Lubrication Hole Location 1/4
Clamping Torque 350 lbf
Static Radial Load 3100 lbs
Dynamic Radial Load 3030 lbs
RoHS Compliant
REACH Compliant
Recom Bore .4375
Recom Bore Tolerance N/A
