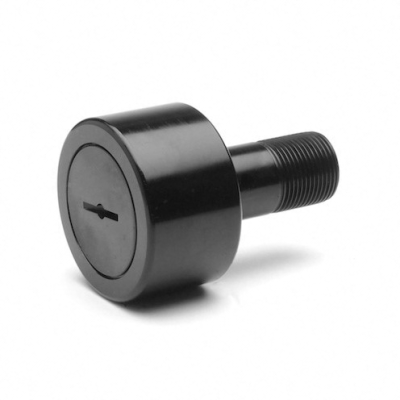

CNB - Standard Slotted Unsealed Cam Follower
/
CNB-40
CNB-40
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | CNB-40 |
Brand: LILY  |
Interchangeable With: Carter |
| System of Measurement | Inch |
| Roller O.d. | 1.25 |
| Roller Width | 0.75" |
| Stud Dia | 0.5" |
| Stud Length | 1.25" |
| M.e.t. | 5/8 |
| Thread Class 2a | 1/2-20 |
| Oil Hole Center | 5/16" |
| Oil Hole Diameter | 3/32" |
| Lube Fitting Size | 3/16" |
| Min. Boss Diameter | 0.7656 |
| Mounting Bore | 0.5 |
| Torque (in-lb) | 175 |
| Max Static Capacity (lbf) | 4250 lbf |
| Basic Dynamic Rating (lbf) | 3930 lbf |
| Limiting Speed (rpm) | 3100 |
| For Load Direction | Radial |
| Roller Shape | Cylinderical |
| Internal Construction | Full Complement |
| Type | Standard Stud |
| Mounting Method | Screwdriver Slot |
| Seal Type | Unsealed |
| Roller Material | Bearing Steel |
| Roller Dia | 1.25" |
| Threads | 1/2-20 |
| Minimum Thread Length | 5/8" |
| Shoulder Dia | 0.7656" |
| Max Speed | 3100 rpm |
| Static Radial Load | 4250 lbf |
| Dynamic Radial Load | 3930 lbf |
| RoHS | Compliant |
| REACH | Compliant |
