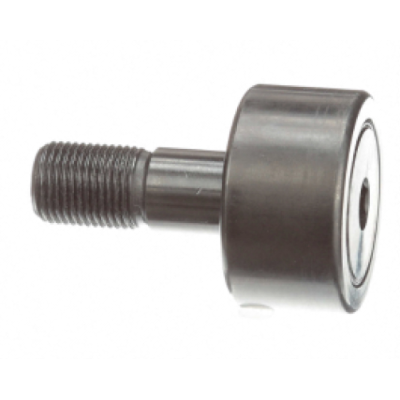

CFH 7/8 SB Cam Followers
Price Not yet
| Mcgill Part No. | CFH 7/8 SB |
| LILY Part No. | LCFH 7/8 SB |
| Cross Reference | McGill |
| System of Measurement | Inch |
| Platform | Camrol |
| Type | Heavy Stud |
| Roller Dia | 0.875" |
| Stud Roller Dia | 0.875" |
| Roller Width | 0.5" |
| Stud Roller Width | 0.5" |
| Roller Material | Bearing Steel, Black Oxide Finish |
| Stud Dia | 0.4375" |
| Stud Length | 0.875" |
| Seal Type | Sealed |
| Dynamic Load Rating | 1660 lbf |
| Static Load Rating | 2100 lbf |
| Limiting Speed | 5400 |
| Lubrication Fitting Size | 0.1875" |
| Oil Hole Center | 0.25" |
| Oil Hole Diameter | 0.094" |
| Minimum Thread Length | 0.375" |
| Adjustment | None |
| Roller Shape | Cylindrical |
| Tolerance Class | P0 Equivalent |
| Threads | 7/16-20 |
| Relubricatable | Yes |
| O D Configuration | Cylindrical |
| Stud Type | Heavy Stud |
| Clamping Torquein | 250 lbf |
| Hex Slot | Hex Hole |
| Weight | 0.12 LB |
| Mounting Method | Hex Hole |
| Internal Construction | full compliment |
