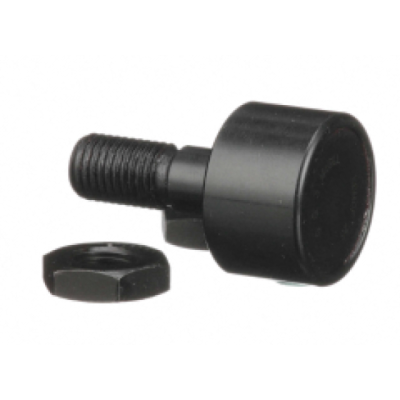

CFD 1 1/2 Cam Followers
Price Not yet
| Mcgill Part No. | CFD 1 1/2 |
| LILY Part No. | LCFD 1 1/2 |
| Cross Reference | McGill |
| System of Measurement | Inch |
| Platform | Heavy-Duty Camrol |
| Type | Standard Stud |
| Roller Dia | 1.5" |
| Stud Roller Dia | 1.5" |
| Roller Width | 0.875" |
| Stud Roller Width | 0.875" |
| Roller Material | Bearing Steel, Black Oxide Finish |
| Stud Dia | 0.625" |
| Stud Length | 1.5" |
| Seal Type | Sealed |
| Dynamic Load Rating | 5000 lbf |
| Static Load Rating | 3800 lbf |
| Dynamic Radial Rating | 5000 lbf |
| Dynamic Track Roller Load Rating | 5000 lbs |
| Limiting Speed | 2500 |
| Minimum Thread Length | 0.75" |
| Adjustment | None |
| Roller Shape | Cylindrical |
| Tolerance Class | P0 Equivalent |
| Hex Socket | 0.3125" |
| Threads | 5/8-18 |
| Relubricatable | No |
| O D Configuration | Cylindrical |
| Stud Type | Standard Stud |
| Endplate Diameter | 0.859375" |
| Clamping Torquein | 650 lbf |
| Hex Slot | Hex Hole |
| Weight | 0.50 LB |
| Mounting Method | Hex Hole |
| Internal Construction | double row |
