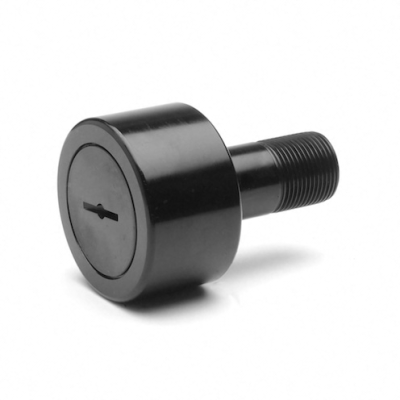

CF 7/8 S
| Part Number | CF 7/8 S |
| System of Measurement | Inch |
| Type | Standard Stud |
| Roller Shape | Cylindrical |
| Internal Construction | Full Compliment |
| For Load Direction | Radial |
| Mounting Method | Screwdriver Slot |
| Seal Type | Sealed |
| Platform | Camrol |
| Roller Material | Bearing Steel |
| Roller Dia | 0.875" |
| Roller Width | 0.5" |
| Stud Dia | 0.375" |
| Stud Length | 0.875" |
| Threads | 3/8-24 |
| Minimum Thread Length | 0.375" |
| Shoulder Dia | 0.61" |
| Shoulder Length | 0.03" |
| Lubrication Fitting Size | 0.1875" |
| Oil Hole Center | 0.25" |
| Oil Hole Diameter | 0.094" |
| Clamping Torque | 95 lbf |
| Max Speed | 5400 |
| Static Radial Load | 1500 lbf |
| Dynamic Radial Load | 1660 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.11 LB |
})
