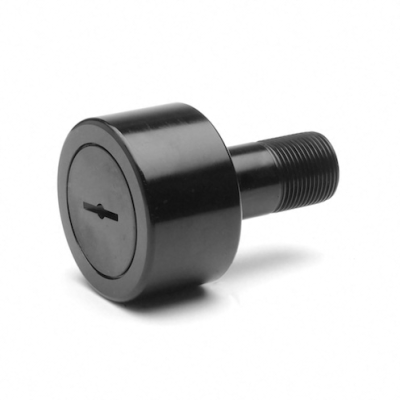

CF 1/2 S Cam Followers
Price Not yet
| Mcgill Part No. | CF 1/2 S |
| LILY Part No. | LCF 1/2 S |
| Cross Reference | McGill |
| System of Measurement | Inch |
| Platform | Camrol |
| Type | Standard Stud |
| Roller Dia | 0.5" |
| Stud Roller Dia | 0.5" |
| Roller Width | 0.375" |
| Stud Roller Width | 0.375" |
| Roller Material | Bearing Steel, Black Oxide Finish |
| Stud Dia | 0.19" |
| Stud Length | 0.625" |
| Seal Type | Sealed |
| Dynamic Load Rating | 680 lbf |
| Static Load Rating | 790 lbf |
| Dynamic Radial Rating | 680 lbf |
| Limiting Speed | 11500 |
| Lubrication Fitting Size | 0.125" |
| Lubrication Hole Location | Stud side |
| Minimum Thread Length | 0.25" |
| Adjustment | None |
| Roller Shape | Cylindrical |
| Tolerance Class | P0 Equivalent |
| Threads | 10-32 |
| Relubricatable | Yes |
| O D Configuration | Cylindrical |
| Stud Type | Standard Stud |
| Clamping Torquein | 15 lbf |
| Hex Slot | Screwdriver Slot |
| Weight | 0.04 LB |
| Mounting Method | Screwdriver slot |
| Internal Construction | full compliment |
