CF 1 1/8 SB

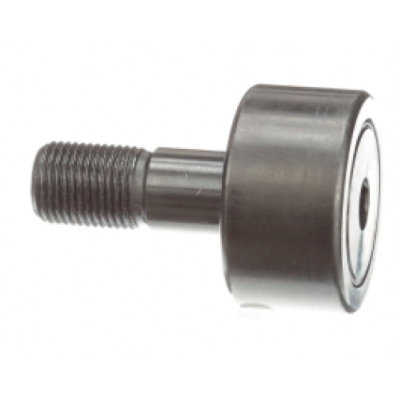

CF 1 1/8 SB Stud Type Rollers
Price $ 9.23
Number
Part Number CF 1 1/8 SB
Brand: LILY
|
Equivalent: McGill
System of Measurement Inch
For Load Direction Radial
Roller Shape Cylindrical
Internal Construction Full Complement
Type Standard Stud
Mounting Method Hex Hole
Seal Type Sealed
Platform Camrol
Roller Material Bearing Steel
Roller Dia 1.125"
Roller Width 0.625"
Stud Dia 0.4375"
Stud Length 1"
Threads 7/16-20
Minimum Thread Length 0.5"
Shoulder Dia 0.78"
Shoulder Length 0.03"
Hex Socket 0.25"
Lubrication Fitting Size 0.1875"
Oil Hole Center 0.25"
Oil Hole Diameter 0.094"
Clamping Torque 250 lbf
Max Speed 3400
Static Radial Load 1800 lbf
Dynamic Radial Load 2225 lbf
RoHS Compliant
REACH Compliant
Weight 0.21 LB
