780702D

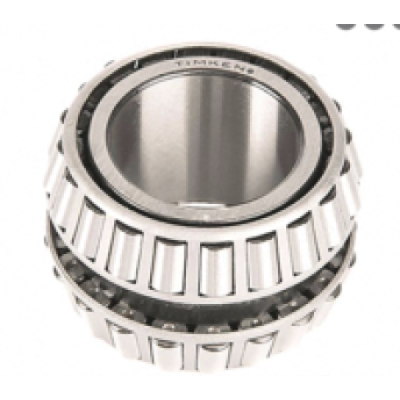

780702D Double Cones (Imperial)
Part Number 780702D
System of Measurement Inch
Type Cones
Bearing Part Number 780702D-781400
Bearing Type Roller
Roller Bearing Type Tapered Roller
For Load Direction Combined
Construction Double Row
Seal Type Open
Series 780000
Bore Dia 7"
Bore Dia Tolerance +0.001" to 0
Double Cone Width 4.1875"
Double Cone Width Tolerance +0.003" to -0.01
Cone Backface ToClear Radius 0.13"
Cone Frontface Backing Diameter 8.03"
Cone Backface Backing Diameter 8.03"
Cage Cone Frontface Clearance 0.54"
Static Radial Load 243000 lbf
Roller Material Chrome Steel
Cage Material Pin-Type
Dynamic Radial Rating(90 Million Revolutions) 48200 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions) 324000 lbf
Dynamic Radial Rating(1 Million Revolutions) 186000 lbf
Dynamic Thrust Rating(90 Million Revolutions) 33000 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions) 84000 lbf
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
