44158

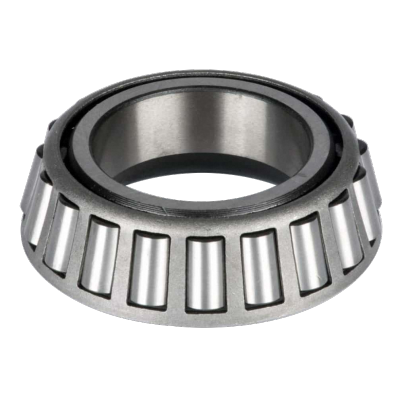

44158 Single Cones (Imperial)
Part Number 44158
Brand: LILY
|
Equivalent: Timken
System of Measurement Inch
Type Cones
Bearing Part Number 44158-44348 , 44158-44354 , 44158-44348-B
Bearing Type Roller
Roller Bearing Type Tapered Roller
For Load Direction Combined
Construction Single Row
Seal Type Open
Series 44000
Bore Dia 1.5625"
Bore Dia Tolerance +0.005" to 0
Cone Width 0.933"
Cone Width Tolerance +0.003" to -0.01
Cone Backface ToClear Radius 0.14"
Cone Frontface Backing Diameter 2"
Cone Backface Backing Diameter 2.28"
Cage Cone Frontface Clearance 0.15"
Cage Cone Backface Clearance 0.12"
Effective Center Location 0.09"
Ring Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 22400 lbf
Static Radial Load 19900 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 5810 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 39100 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7770 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 10100 lbf
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
