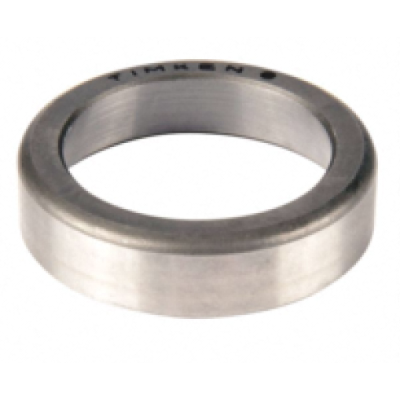

42624
Part Number | 42624 |
Brand: LILY | |
Equivalent: Timken |
System of Measurement | Inch |
Type | Cups |
Bearing Part Number | 42683-42624 , 42686-42624 , 42687-42624 , 42687A-42624 , 42688-42624 , 42690-42624 , 42690H-42624 |
Cups Type | Standard |
Series | 42600 |
Outer Dia | 5.1171" |
Outer Dia Tolerance | +0.001" to 0 |
Cup Width | 1.063" |
Cup Width Tolerance | +0.002" to -0.01 |
Cup Backface ToClear Radius | 0.09" |
Cup Frontface Backing Diameter | 4.87" |
Cup Backface Backing Diameter | 4.53" |
Ring Material | Chrome Steel |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
RoHS | Compliant |
REACH | Compliant |
