One-Way Needle-Roller Bearing Clutches
66 Products

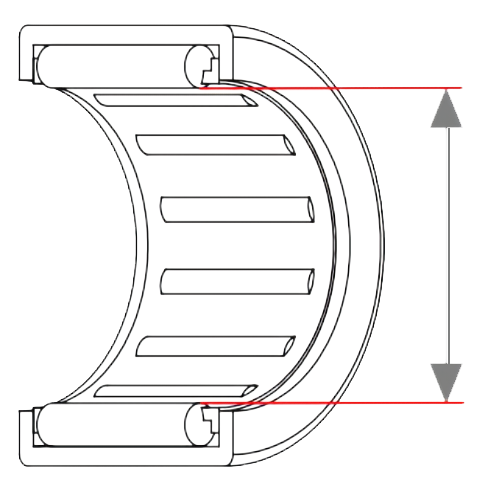

The needles in these bearings roll freely in one direction, but lock to transmit torque when the rotation of the shaft is reversed.Also known as drawn-cup roller clutches. An arrow on the lip indicates the rotational direction that locks the bearings.Single-row bearings do not support loads from any direction. To support radial loads, use with our Needle-Roller Bearings.Triple-row bearings support radial loads.
The miniature one-way clutch consists of drawn cup, rollers, cage, and springs.The drawn cup, made of carburized steel sheet, has a unique structure: a protruding portion, which serves as a stopper of rotation on the outside surface at O.D. side, and a cam on the outer ring at bore side are provided.
One-Way Needle-Roller Bearing Clutches
To support radial loads, use with our Needle-Roller Bearings.
Part Number
Series
Bore Dia
Outer Dia
Width
Cage
Material
Material
Spring
Material
Material
Torque
Capacity
Capacity
Knurled
Max Speed
(X1000 rpm)
(X1000 rpm)
HF0306-KF
HF Series
3 mm
6.5 mm
6 mm
Steel
Plastic
0.18 Nm
No
45
HF0306-KF-R
HF Series
3 mm
6.5 mm
6 mm
Steel
Plastic
0.06 Nm
Yes
45
HFL0308-KF
HFL Series
3 mm
6.5 mm
8 mm
Steel
Plastic
0.18 Nm
No
45
HFL0308-KF-R
HFL Series
3 mm
6.5 mm
8 mm
Steel
Plastic
0.06 Nm
Yes
45
EWC0406A
EWC Series
4 mm
8 mm
6 mm
Steel
Plastic
0.08 Nm
-
-
EWC0406C
EWC Series
4 mm
8 mm
6 mm
Steel
Plastic
0.15 Nm
-
-
HF0406-KF
HF Series
4 mm
8 mm
6 mm
Steel
Plastic
0.34 Nm
No
34
HF0406-KF-R
HF Series
4 mm
8 mm
6 mm
Steel
Plastic
0.1 Nm
Yes
34
HFL0408-KF
HFL Series
4 mm
8 mm
8 mm
Steel
Plastic
0.34 Nm
No
34
HFL0408-KF-R
HFL Series
4 mm
8 mm
8 mm
Steel
Plastic
0.1 Nm
Yes
34
1WC0608
1WC Series
6 mm
10 mm
8 mm
Steel
Steel
0.44 Nm
-
-
1WC0612
1WC Series
6 mm
10 mm
12 mm
Steel
Steel
0.88 Nm
-
-
EWC0606XC
EWC Series
6 mm
10 mm
6 mm
Steel
Plastic
0.19 Nm
-
-
EWC0608A
EWC Series
6 mm
10 mm
8 mm
Steel
Plastic
0.25 Nm
-
-
EWC0608C
EWC Series
6 mm
10 mm
8 mm
Steel
Plastic
0.44 Nm
-
-
EWC0608XA
EWC Series
6 mm
10 mm
7.5 mm
Steel
Plastic
0.25 Nm
-
-
EWC0608XC
EWC Series
6 mm
10 mm
7.5 mm
Steel
Plastic
0.44 Nm
-
-
HF0612
HF Series
6 mm
10 mm
12 mm
Steel
Steel
1,76 Nm
No
23
HF0612-KF
HF Series
6 mm
10 mm
12 mm
Steel
Plastic
1,76 Nm
No
23
HF0612-KF-R
HF Series
6 mm
10 mm
12 mm
Steel
Plastic
0.6 Nm
Yes
23
HF0612-R
HF Series
6 mm
10 mm
12 mm
Steel
Steel
0.6 Nm
Yes
23
HFL0606-KF-R
HFL Series
6 mm
10 mm
6 mm
Steel
Plastic
0.5 Nm
Yes
23
HFL0615
HFL Series
6 mm
10 mm
15 mm
Steel
Steel
1.76 Nm
No
23
HFL0615-KF
HFL Series
6 mm
10 mm
15 mm
Steel
Plastic
1.76 Nm
No
23
HFL0615-KF-R
HFL Series
6 mm
10 mm
15 mm
Steel
Plastic
0.6 Nm
Yes
23
HFL0615-R
HFL Series
6 mm
10 mm
15 mm
Steel
Steel
0.5 Nm
Yes
23
1WC0812
1WC Series
8 mm
14.2 mm
12 mm
Steel
Steel
1.96 Nm
-
-
1WC0815
1WC Series
8 mm
14.2 mm
14.5 mm
Steel
Steel
2.65 Nm
-
-
EWC0809A
EWC Series
8 mm
12 mm
9 mm
Steel
Plastic
0.49 Nm
-
-
EWC0809C
EWC Series
8 mm
12 mm
9 mm
Steel
Plastic
0.88 Nm
-
-
EWC0812A
EWC Series
8 mm
14.2 mm
15 mm
Steel
Plastic
1.18 Nm
-
-
EWC0812C
EWC Series
8 mm
14.2 mm
15 mm
Steel
Plastic
1.96 Nm
-
-
HF0812
HF Series
8 mm
12 mm
12 mm
Steel
Steel
3.15 Nm
No
17
HF0812-KF
HF Series
8 mm
12 mm
12 mm
Steel
Plastic
3.15 Nm
No
17
HF0812-KF-R
HF Series
8 mm
12 mm
12 mm
Steel
Plastic
1 Nm
Yes
17
HF0812-R
HF Series
8 mm
12 mm
12 mm
Steel
Steel
1 Nm
Yes
17
HFL0806-KF-R
HFL Series
8 mm
12 mm
6 mm
Steel
Plastic
0.7 Nm
Yes
17
HFL0822
HFL Series
8 mm
12 mm
22 mm
Steel
Steel
3.15 Nm
No
17
HFL0822-KF
HFL Series
8 mm
12 mm
22 mm
Steel
Plastic
3.15 Nm
No
17
HFL0822-KF-R
HFL Series
8 mm
12 mm
22 mm
Steel
Plastic
1 Nm
Yes
17
HFL0822-R
HFL Series
8 mm
12 mm
22 mm
Steel
Steel
1 Nm
Yes
17
1WC1012
1WC Series
10 mm
16 mm
12 mm
Steel
Steel
2.35 Nm
-
-
EWC1010A
EWC Series
10 mm
16 mm
17 mm
Steel
Plastic
1.18 Nm
-
-
EWC1010C
EWC Series
10 mm
16 mm
17 mm
Steel
Plastic
1.96 Nm
-
-
EWC1012A
EWC Series
10 mm
16 mm
17 mm
Steel
Plastic
1.37 Nm
-
-
EWC1012C
EWC Series
10 mm
16 mm
17 mm
Steel
Plastic
2.35 Nm
-
-
HF1012
HF Series
10 mm
14 mm
12 mm
Steel
Steel
5.3 Nm
No
14
HF1012-KF
HF Series
10 mm
14 mm
12 mm
Steel
Plastic
5.3 Nm
No
14
HFL1022
HFL Series
10 mm
14 mm
22 mm
Steel
Steel
5.3 Nm
No
14
1WC1216
1WC Series
12 mm
18 mm
16 mm
Steel
Steel
6.28 Nm
-
-
HF1216
HF Series
12 mm
18 mm
16 mm
Steel
Steel
12.2 Nm
No
11
HFL1226
HFL Series
12 mm
18 mm
26 mm
Steel
Steel
12.2 Nm
No
11
HF1416
HF Series
14 mm
20 mm
16 mm
Steel
Steel
17.3 Nm
No
9.5
HFL1426
HFL Series
14 mm
20 mm
26 mm
Steel
Steel
17.3 Nm
No
9.5
HF1616
HF Series
16 mm
22 mm
16 mm
Steel
Steel
20.5 Nm
No
8.5
HFL1626
HFL Series
16 mm
22 mm
26 mm
Steel
Steel
20.5 Nm
No
8.5
HF1816
HF Series
18 mm
24 mm
16 mm
Steel
Steel
24.1 Nm
No
7.5
HFL1826
HFL Series
18 mm
24 mm
26 mm
Steel
Steel
24.1 Nm
No
7.5
HF2016
HF Series
20 mm
26 mm
16 mm
Steel
Steel
28.5 Nm
No
7
HFL2026
HFL Series
20 mm
26 mm
26 mm
Steel
Steel
28.5 Nm
No
7
HF2520
HF Series
25 mm
32 mm
20 mm
Steel
Steel
66 Nm
No
5.5
HFL2530
HFL Series
25 mm
32 mm
30 mm
Steel
Steel
66 Nm
No
5.5
HF3020
HF Series
30 mm
37 mm
20 mm
Steel
Steel
90 Nm
No
4.5
HFL3030
HFL Series
30 mm
37 mm
30 mm
Steel
Steel
90 Nm
No
4.5
HF3520
HF Series
35 mm
42 mm
20 mm
Steel
Steel
121 Nm
No
3.9
HFL3530
HFL Series
35 mm
42 mm
30 mm
Steel
Steel
121 Nm
No
3.9
