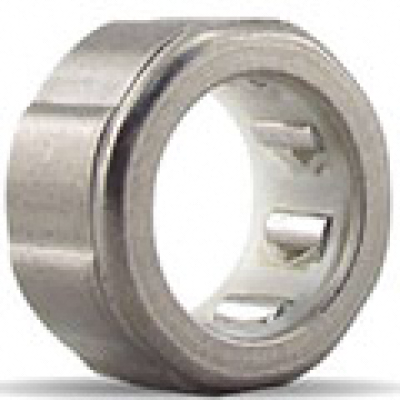

EWC0812A
| Part Number | EWC0812A |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Needle |
| Construction | Single Row |
| Seal Type | Open |
| Series | EWC Series |
| Bore Dia | 8 mm |
| Outer Dia | 14.2 mm |
| Width | 15 mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Needle Material | Steel |
| Spring Material | Plastic |
| Torque Capacity | 1.18 Nm |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight | 5.8 g |
})
