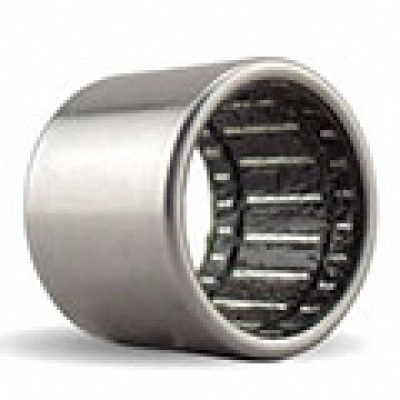

HFL1426
| Part Number | HFL1426 |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Needle |
| Construction | Triple Row |
| Knurled | No |
| Seal Type | Open |
| Series | HFL Series |
| Bore Dia | 14 mm |
| Outer Dia | 20 mm |
| Width | 26 mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Needle Material | Steel |
| Spring Material | Steel |
| Max Speed (X1000 rpm) | 9.5 |
| Torque Capacity | 17.3 Nm |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight | 20 g |
})
