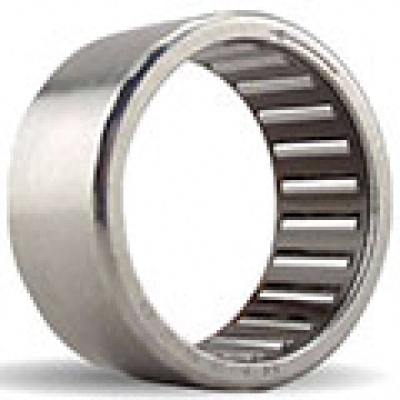

HF3520
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | HF3520 |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Needle Roller |
| Seal Type | Open |
| Shaft Mount Type | Press Fit |
| Construction | Single Row |
| Series | HF Series |
Dimensions |
|
| Bore Dia | 35 mm |
| Outer Dia | 42 mm |
| Width | 20 mm |
Material |
|
| Ring Material | Steel |
| Needle Material | Steel |
| Spring Material | Steel |
| Cage Material | Steel |
Performance |
|
| Max Speed (X1000 rpm) | 3.9 |
| Torque Capacity | 121 Nm |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight | 40 g |
| Knurled | No |
Design Features of HF3520 Bearing
HF3520 bearing allows rotation in one direction while locking the bearing in the opposite direction to transmit torque. HF3520 bore dia is 35 mm. Its out dia is 42 mm. HF3520 width is 20 mm. Its unique design and functionality make it indispensable in various mechanical systems.
What Benefits Can HF3520 Bearing Provide?
- Compact Design: This bearing saves space and reduces the overall weight of the machinery or system.
- Unidirectional Rotation: It allows shafts to rotate freely in one direction while locking and preventing reverse rotation.
- Torque Transmission: Efficiently transmit torque when engaged, providing high load-carrying capacity due to the line contact of needle rollers.
- High Load Capacity: It can handle high radial loads due to their design, which distributes the load over a larger area.
What Can HF3520 Bearing Be Used for?
HF3520 bearing is used across various industries due to its reliability and efficiency. Common applications include:
- Office Equipment: Paper movement in copiers, fax machines, and paper towel dispensers.
- Fitness Equipment: Ensuring smooth operation in exercise machines.
- Automotive Industry: This bearing is utilized in two-speed gearboxes and rack indexing drives.
- Recreational Gear: lt can be founded in fishing reels, RC cars, RC helicopters, and RC engines.
