EWC1012A

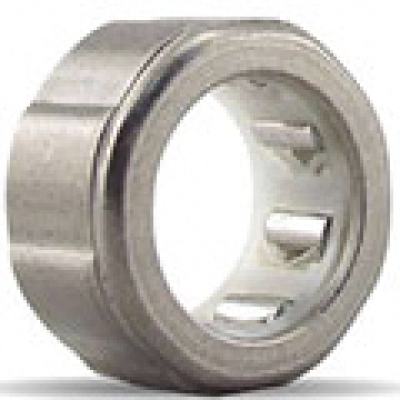

EWC1012A One-Way Needle-Roller Bearing Clutches
Part Number EWC1012A
Brand: LILY
|
Equivalent: Schaeffler (INA)
System of Measurement Metric
Bearing Type Needle
Construction Single Row
Seal Type Open
Series EWC Series
Bore Dia 10 mm
Outer Dia 16 mm
Width 17 mm
Ring Material Steel
Cage Material Steel
Needle Material Steel
Spring Material Plastic
Torque Capacity 1.37 Nm
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
RoHS Compliant
Weight 6.8 g
EWC1012A One-Way Needle-Roller Bearing Clutches cad drawing
