A pillow block bearing (also called a plummer block or housed bearing unit) is a mounted bearing assembly that combines a housing, a bearing insert, and shaft seals into a single, bolt-ready unit.
The housing features a flat base with bolt holes for mounting on a support surface parallel to the bearing's center axis, while the internal bearing — either a spherical ball or roller type — allows the shaft to rotate smoothly under radial and limited axial loads.
Pillow blocks are the go-to solution whenever a machine structure cannot directly accommodate a bare bearing. They are installed at both ends of a rotating shaft, providing reliable support in demanding environments — from dusty conveyor belts to outdoor agricultural machinery and high-speed industrial fans.
💡 Key Advantage: Because the bearing is pre-seated inside the housing, pillow blocks dramatically reduce installation time and complexity — especially critical in continuous-production environments where downtime is costly.
Bearing housing — split or integral cast iron / carbon steel
Insert bearing — spherical ball or roller bearing
Shaft seal — contact or labyrinth type to retain lubricant
Set screws or adapter sleeve — locks the shaft in place
Grease fitting (Zerk nipple) — for field re-lubrication
Material handling & conveying systems
Agriculture & food processing equipment
Mining, quarrying, and construction machinery
HVAC fans, blowers, and centrifugal pumps
Automotive manufacturing lines and test rigs
Textile machinery and power generation / wind energy
Choosing the correct pillow block type for your application determines load capacity, speed rating, maintenance interval, and service life. The table below summarizes the primary categories and their ideal use cases.
|
Type |
Insert Bearing |
Load Capacity |
Best For |
Shaft Range |
|
Standard UCP Series |
Deep groove ball |
Light to medium |
Fans, conveyors, pumps |
12 – 90 mm |
|
UCF Flange Unit |
Spherical insert |
Medium + axial |
Wall-mount applications |
15 – 80 mm |
|
SAF / Plummer Block |
Spherical roller |
Heavy + high thrust |
Mining, mills, steel |
50 – 630 mm |
|
Stainless Steel Unit |
Stainless insert |
Light to medium |
Food, pharma, marine |
15 – 60 mm |
|
Eccentric Locking |
Eccentric collar |
Light to medium |
Easy install, light duty |
12 – 65 mm |
|
Linear Ball Pillow |
Linear ball bearing |
Linear motion only |
Robotics, CNC, actuators |
6 – 60 mm |
|
Plastic / Polymer |
Plastic housing |
Light duty |
Corrosive / wet / chemical |
10 – 50 mm |
|
Feature |
Pillow Block |
Plummer Block |
|
Bearing Replacement |
Whole unit replaced |
Bearing replaceable alone |
|
Shaft Diameter |
Small to medium bore |
Large bore diameter |
|
Load Capacity |
Relatively lighter loads |
Heavy radial + thrust loads |
|
Speed Range |
Low to high speed |
Typically lower speed |
|
Installation |
Faster — pre-assembled |
More complex setup |
Grey cast iron — standard choice; excellent vibration damping; most economical
Spheroidal graphite cast iron — higher tensile strength for heavy-duty applications
Cast / forged carbon steel — highest load capacity for extreme conditions
Stainless steel — corrosion-resistant; food & pharmaceutical grade (AISI 316)
Engineering polymers / plastics — lightweight; chemically inert; self-lubricating options
Based on market rankings as of March 2026, global industry reputation, product breadth, and click-share data from the Metoree industrial platform, here are the manufacturers that stand above the rest in the global pillow block bearing industry.
With over a century of manufacturing stamped and fabricated motion components, Triangle Manufacturing sits at the top of the 2026 rankings. Their engineering team supports clients from quoting through prototyping to production — a genuinely end-to-end service model rare among bearing specialists.
A precision specialist serving aerospace, robotics, medical technology, and industrial manufacturing. SDP/SI manufactures bearing pillow blocks in alloy steel, stainless, bronze, and titanium, with custom coating options including heat treating and zinc plating.
One of the world's oldest and most trusted bearing companies, Timken's SAF pillow block line is an industry benchmark for heavy-duty process industries. Operating in Mobile and Process Industries segments, Timken's SAF series covers shaft diameters from 45 mm up to 630 mm with integrated lubrication systems.
A specialist in plastic and 316 stainless radial ball bearings, KMS fills the niche between standard metallic housings and fully corrosion-resistant designs. Ideal for food processing, pharmaceutical, and chemical conveying applications where standard cast iron units would fail prematurely.
A full-spectrum power transmission brand now part of Regal Rexnord. Their pillow block and sleeve bearing range is complemented by smart condition monitoring systems and digital productivity platforms — positioning Rexnord as a forward-looking choice for Industry 4.0 environments in aerospace, mining, and food processing.
Born from the merger of bearing giant Koyo Seiko and machine tool maker Toyoda Machine Works, JTEKT is one of the largest bearing manufacturers in the world. Their Koyo-branded plummer block series is widely used in automotive manufacturing, wind turbines, and industrial robotics across Asia and Europe.
With over 110 years of precision engineering history, NSK is the longest-established bearing company in this list. Their pillow block and bearing unit catalog (CAT E1103b) covers virtually every mounted bearing configuration, from light-duty insert units to heavy-duty spherical roller plummer blocks for paper mills and wind energy.
The top-ranked Chinese pillow block manufacturer in the Metoree database, LDK Bearings stands out for its IATF 16949 certification — the automotive quality management standard — and its in-house fatigue life and salt spray testing capabilities. A strong value option for automotive, construction, and agricultural OEMs.
The following rankings are derived from click-share data on the Metoree industrial platform as of March 2026 — a reliable proxy for buyer interest and search relevance in the global industrial procurement community.
|
Rank |
Company Name |
Country |
Founded |
Click Share (2026) |
|
1 |
Triangle Manufacturing Company |
USA |
1922 |
9.1% |
|
2 |
SDP/SI – Stock Drive Products |
USA |
1950 |
7.7% |
|
3 |
TIMKEN |
USA |
1899 |
7.7% |
|
4 |
KMS Bearings, Inc. |
USA |
1979 |
6.7% |
|
5 |
Rexnord (Regal Rexnord) |
USA |
1948 |
6.2% |
|
6 |
American Pulley Co. |
USA |
— |
6.2% |
|
7 |
Lucas Industrial |
USA |
1988 |
6.2% |
|
8 |
JTEKT Corporation (Koyo) |
Japan |
— |
4.3% |
|
9 |
BDH Bearings |
India |
— |
3.8% |
|
10 |
ZYSL Co., Ltd |
China |
1999 |
3.8% |

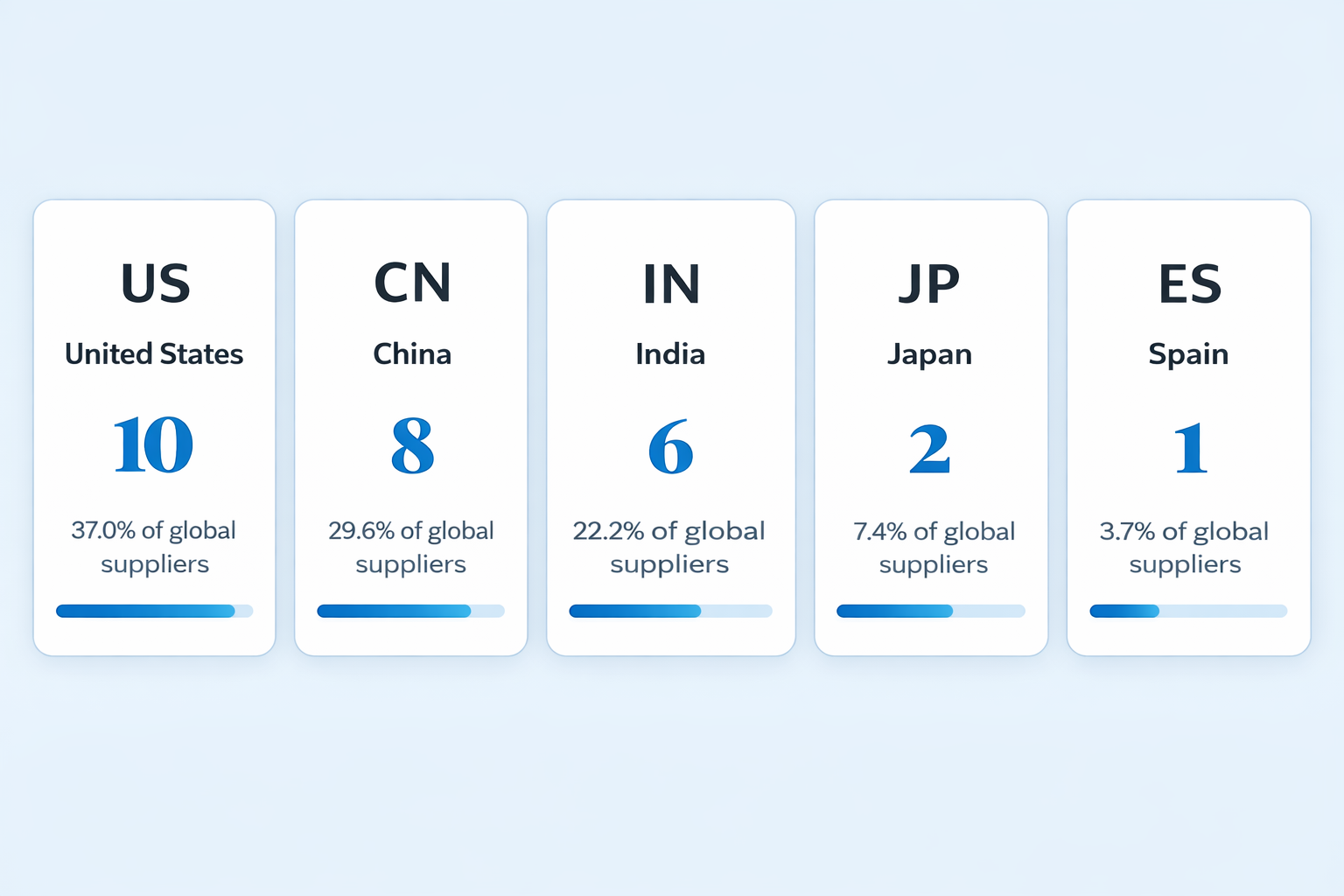

The pillow block market is geographically diverse, with the United States leading in both number of suppliers and market share. China has emerged as a major manufacturing hub, while India's growing industrial base is rapidly expanding its presence.
📊 Market Note: While US-headquartered companies dominate by count, Chinese manufacturers collectively account for an estimated 45-50% of global pillow block unit production by volume — particularly in standard UCP200 and UCP300 series used across light to medium industry globally.
The global pillow block bearing market is projected to grow steadily through the end of the decade, driven by expanding manufacturing infrastructure in Asia, rising demand from renewable energy projects, and the accelerating adoption of Industry 4.0 automation. Here are the key trends shaping the next five years.
Manufacturers like Rexnord and JTEKT are embedding wireless condition monitoring sensors directly into bearing housings. Expect real-time temperature, vibration, and load data to become standard in premium pillow blocks by 2028, enabling predictive maintenance and near-zero unplanned downtime.
Environmental regulations are pushing manufacturers toward bio-degradable greases and sealed-for-life designs that eliminate re-lubrication entirely. Oil-free polymer-lined units — already offered by companies like Kashima Chemical Metals — will gain significant market share in food and pharmaceutical applications.
Wind turbine installation is forecast to add 900+ GW of capacity globally by 2030. Each turbine requires multiple heavy-duty plummer block assemblies — a direct and growing demand channel for high-load units from Timken, NSK, and JTEKT. Offshore wind particularly favors corrosion-resistant stainless variants.
Post-pandemic supply chain disruptions are accelerating "China+1" sourcing strategies. Indian manufacturers (BDH Bearings, Preci-max, Marvel Engineering) and US producers are well-positioned to capture orders from OEMs seeking to diversify away from single-country dependency.
Ceramic-hybrid bearings, DLC (diamond-like carbon) coatings, and self-lubricating composite housings are moving from aerospace into mainstream industrial pillow blocks. These materials extend service life by 2–3× in high-temperature and contaminated environments.
Industrial distributors like QBC, Reid Supply, and SDP/SI are expanding their digital catalogs and configurator tools. Same-day quotation for standard UCP series units is becoming table stakes, compressing lead times and forcing traditional manufacturers to invest in digital distribution channels.
|
Year |
Market Size |
YoY Growth |
Key Driver |
|
2024 |
~$6.1 Billion |
+4.2% |
Post-pandemic industrial recovery |
|
2025 |
~$6.5 Billion |
+5.1% |
Renewable energy & automation growth |
|
2026 |
~$6.8 Billion |
+4.8% |
Smart bearings, India manufacturing boom |
|
2027 |
~$7.2 Billion |
+5.5% |
Offshore wind, EV production lines |
|
2028 |
~$7.7 Billion |
+6.0% |
Sensor-integrated pillow blocks adoption |
|
2030 (est.) |
~$8.8 Billion |
+6.5% |
Full Industry 4.0 integration worldwide |
* Estimates based on industry analyst consensus and sector growth trends. Figures are indicative projections, not audited data.
With dozens of suppliers across five continents, selecting the right partner requires more than just comparing unit prices. Use this framework to make a well-informed procurement decision.
Start with shaft diameter, radial load (static and dynamic), axial thrust load, and operating speed (RPM). Heavy-shock or high-speed applications require spherical roller plummer blocks (Timken SAF), while light-duty conveyors can use standard UCP ball bearing units from any listed manufacturer.
Dusty, wet, corrosive, or food-grade environments narrow your choices significantly. For washdown or chemical exposure, select stainless steel units (KMS Bearings, Zhejiang Waxing). For extreme temperatures above 200°C, look for specialized ceramic or high-temperature grease variants.
ISO 9001 is the baseline. For automotive applications, require IATF 16949 (LDK Bearings). For food/pharma, confirm FDA-compliant housing materials. ISO 113 compliance ensures dimensional interchangeability between brands — critical for future replacement sourcing flexibility.
US-based distributors (QBC, Reid Supply, SDP/SI) typically offer same-day shipping on standard sizes. Chinese manufacturers (LDK, ZYSL, THB) offer lower unit costs but require 4-8 week planning for custom or non-standard configurations.
Established manufacturers like Timken and NSK provide extensive engineering documentation, online selection tools, and global service networks. For critical machinery, the availability of application engineering support and spare parts 10+ years into the future should weigh heavily in any procurement decision.
A pillow block is a specific type of bearing unit with a flat, horizontal mounting base — resembling a pillow when viewed from the side. 'Bearing unit' is the broader category that also includes flange units, take-up frames, and cartridge units. All pillow blocks are bearing units, but not all bearing units are pillow blocks.
For the highest combined radial and axial loads, Timken's SAF plummer block series and NSK's spherical roller plummer blocks lead the industry. Their housings accept large-bore spherical roller bearings rated for dynamic loads in the hundreds of kilonewtons — suitable for paper mills, steel rolling mills, and heavy mining equipment.
Quality varies significantly. Companies like LDK Bearings (IATF 16949 certified) offer consistent quality backed by third-party testing including fatigue life, tensile strength, noise/vibration, and salt spray tests. Always request test certificates and sample inspection for critical applications before committing to high-volume orders.
'UC' stands for the insert bearing series (spherical outer ring for self-alignment), and 'P' indicates a Pillow block housing. The number following (e.g., UCP205) references bore size — in this case 25 mm. This designation is standardized across manufacturers: a UCP205 from LDK Bearings is dimensionally interchangeable with one from NSK or Timken.
The market is expected to grow at 5-6.5% CAGR through 2030, reaching an estimated $8.8 billion. Key growth drivers include renewable energy infrastructure, Industry 4.0 automation, and the emergence of smart sensor-embedded bearing units. The adoption of maintenance-free and extended-life designs is also driving premiumization across the product category.
Whether you are sourcing for a single machine upgrade or managing a global supply chain, use the rankings, comparison tables, and buyer's guide in this report as your starting point.
Verify certifications, request samples, and evaluate long-term technical support before committing — because the right pillow block bearing, in the right housing, from the right manufacturer, is the difference between years of reliable uptime and costly unplanned breakdowns.
William : Aug 26, 2025 5:25:44 AM
In the world of machining, the words CNCs and high precision go hand in hand. The super-high tolerances today's complex parts have to meet come down...
Richard : May 11, 2026 2:36:09 AM

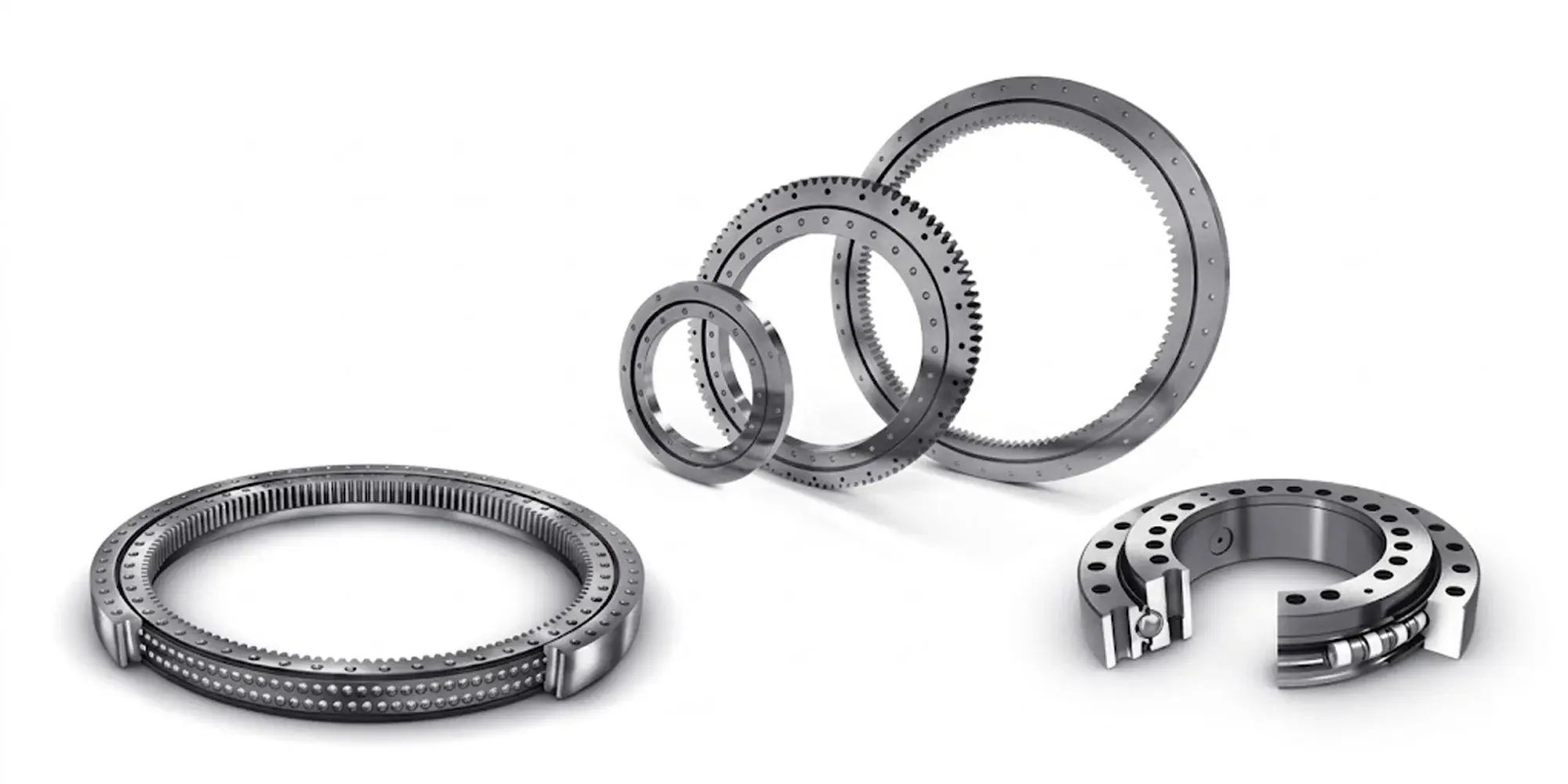

A 200-ton crawler crane pivots its boom across a construction site, swinging thousands of kilograms of steel through a controlled arc. Between the...
Richard : May 21, 2026 5:52:16 AM

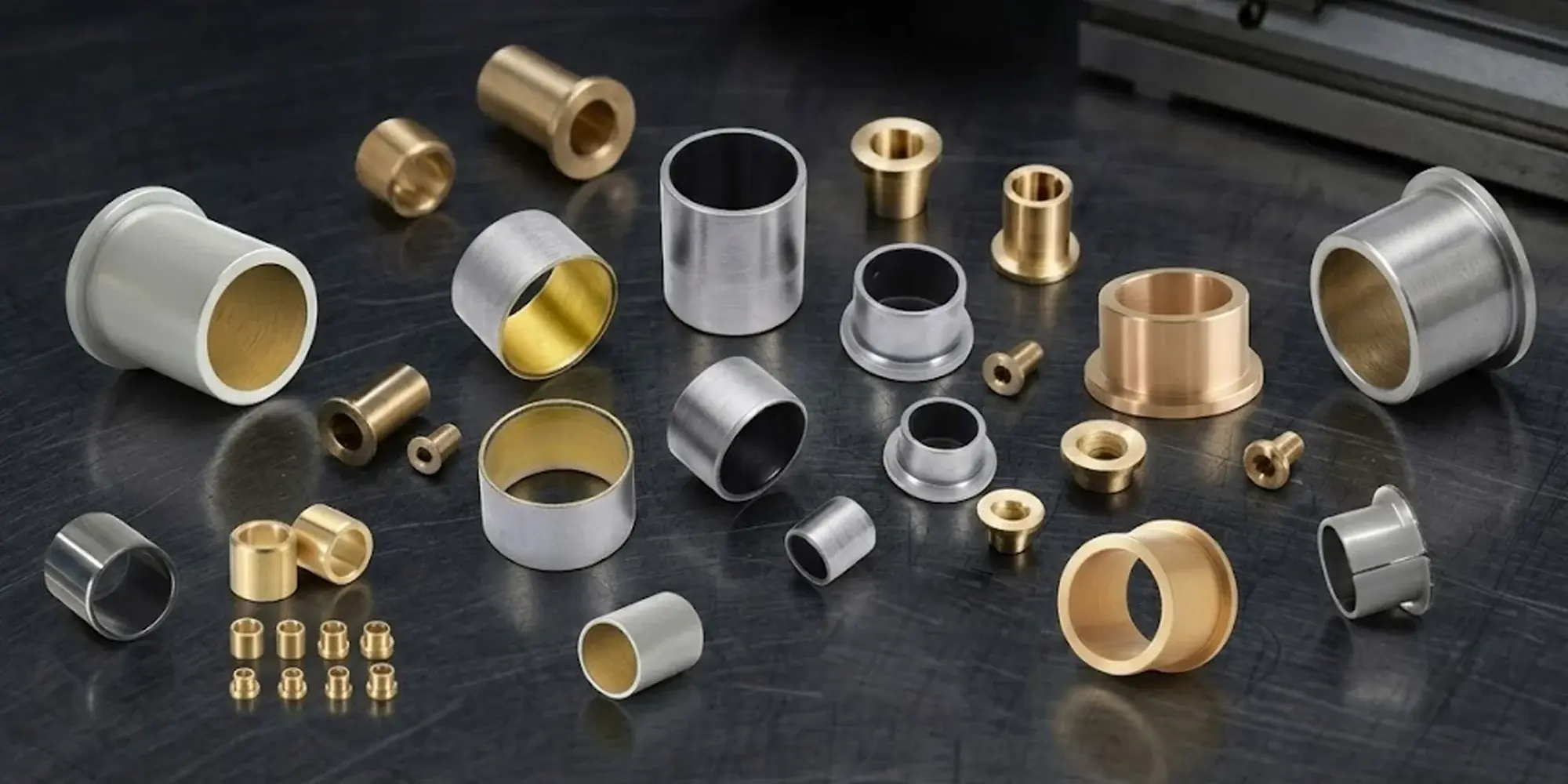

If you've ever taken apart a pump, an electric motor, or a piece of heavy industrial equipment, you've almost certainly encountered a sleeve bearing...
