The 6203DU bearing is a single-row deep groove ball bearing manufactured to the internationally standardized 6203 dimension series, fitted with a rubber contact seal on both sides. The "DU" designation — used primarily by Japanese manufacturers such as NSK, NTN, KOYO, and NACHI — indicates a double-sided rubber contact seal (nitrile rubber), equivalent to the widely recognized "2RS" designation used by European manufacturers like SKF and FAG.
Deep groove ball bearings are by far the most common type of rolling element bearing in existence. Among them, the 6203 series is a cornerstone product — small enough to fit compact machinery, yet robust enough to handle real industrial workloads. The DU rubber seal elevates this already capable bearing by protecting internal components from contamination and retaining grease lubrication, dramatically extending service life in demanding environments.
|
Key Naming Convention: 6 = deep groove ball bearing; 2 = light series (small cross-section); 03 = bore code (17 mm); DU = double-sided nitrile rubber contact seal. |
|
Parameter |
Value |
Unit |
Notes |
|
Bore Diameter (d) |
17 |
mm |
Inner ring bore |
|
Outer Diameter (D) |
40 |
mm |
Outer ring OD |
|
Width (B) |
12 |
mm |
Overall bearing width |
|
Dynamic Load Rating (C) |
9.56 |
kN |
ISO 281 standard |
|
Static Load Rating (C0) |
4.75 |
kN |
ISO 76 standard |
|
Limiting Speed (Grease) |
15,000 |
rpm |
With DU seal |
|
Mass (Weight) |
~47 |
g |
Approx. per unit |
|
Seal Type |
DU (2RS) |
— |
Nitrile rubber contact seal |
|
Temperature Range |
-30 to +100 |
°C |
Standard nitrile rubber |
|
Internal Clearance |
C3 (optional) |
— |
Standard CN or C3 |
|
Lubrication |
Pre-greased |
— |
Lithium-based grease |
Proper shaft and housing fits are critical for optimal 6203DU performance. Below are standard recommendations for typical rotating inner ring applications:
|
Application Type |
Shaft Tolerance |
Housing Tolerance |
Typical Use Case |
|
Normal rotating load |
j5 / js5 |
H7 |
Electric motors, fans |
|
Light rotating load |
h6 |
H7 |
Instruments, light machinery |
|
Heavy rotating load |
k5 / m5 |
JS7 |
Pumps, compressors |
|
Stationary inner ring |
g6 |
K7 / M7 |
Wheel hubs, non-rotating shafts |
The 6203DU's enduring popularity across virtually every industry is no accident. Its combination of the proven deep groove ball bearing geometry with the practical advantages of the DU rubber seal creates a component that punches well above its weight class.
|
Pro Insight: The rubber contact seal (DU/2RS) introduces slightly more friction than a non-contact shield (ZZ), reducing maximum speed slightly. However, the superior sealing performance of the DU seal far outweighs this trade-off in the vast majority of real-world applications. |
The 6203DU's compact dimensions (17 × 40 × 12 mm), robust sealing, and excellent load ratings make it the bearing of choice across a remarkably diverse range of industries. Below are the most important application areas.
Agricultural environments represent one of the most punishing use cases for any bearing. Dust, mud, moisture, crop residue, and continuous vibration combine to destroy unprotected bearings in a matter of hours. The 6203DU's contact rubber seal makes it a natural fit for this sector.
Typical agricultural installations include conveyor belt drive shafts, seeding machine drives, irrigation pump motors, and sprayer fan bearings. In all these cases, the bearing must operate continuously with minimal maintenance — precisely what the factory-sealed, pre-greased 6203DU was designed to deliver.
The 6203 base bearing is available in several seal and shield configurations. Choosing the right variant depends on your speed requirements, operating environment, and maintenance access. Use this comparison to make the right call.
|
Bottom Line: For 90% of real-world applications — motors, pumps, tools, appliances — the 6203DU (or equivalent 6203-2RS) is the optimal choice. It balances protection, speed, and maintenance-free operation better than any other variant in the series. |

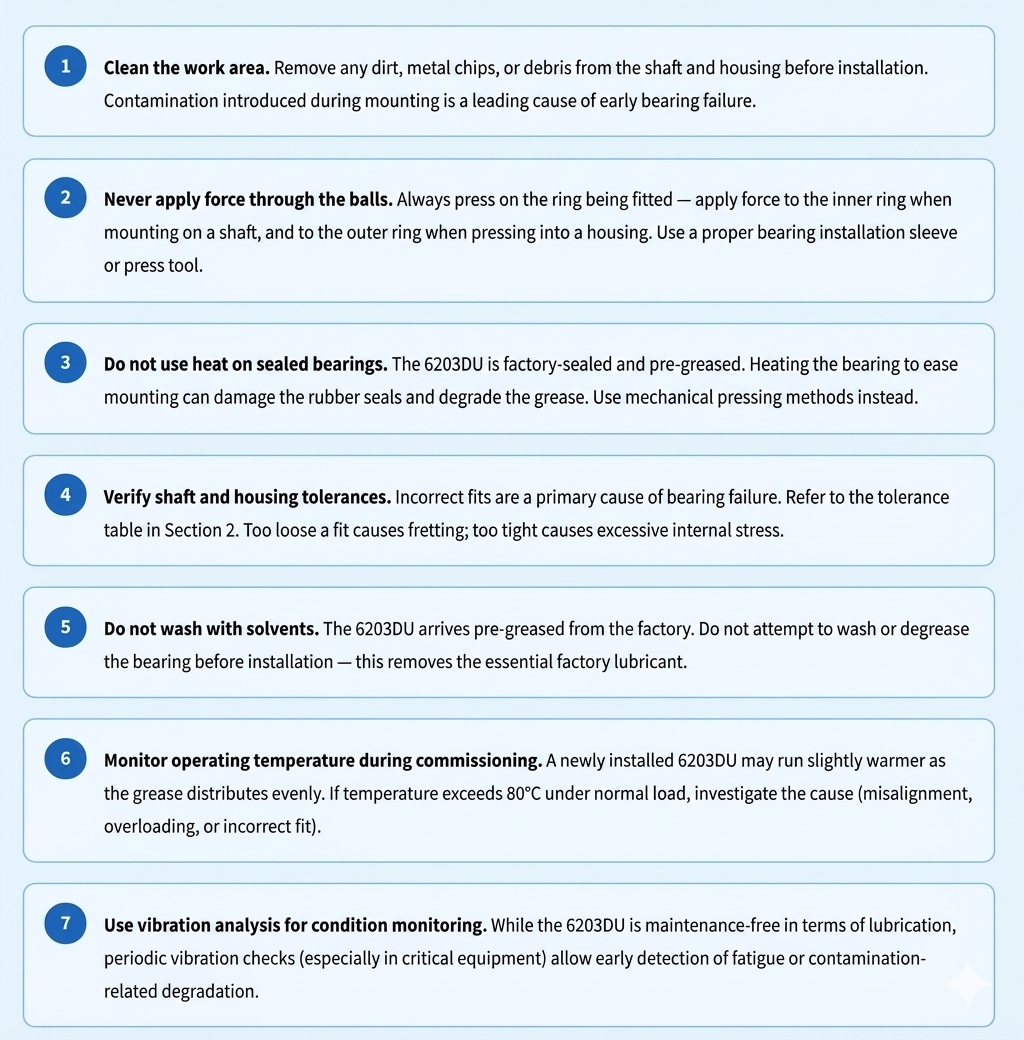

Even the best bearing will fail prematurely if improperly installed. The 6203DU is a forgiving bearing, but following best practices significantly extends its service life and prevents avoidable failures.
|
Failure Mode |
Visual Indicator |
Root Cause |
Prevention |
|
Flaking / Spalling |
Pitting on raceways or balls |
Overloading, fatigue, contamination |
Correct load calculation; proper sealing |
|
Wear |
Increased radial play, noise |
Seal damage, abrasive contamination |
Inspect seals; maintain clean environment |
|
Fretting Corrosion |
Rust-colored debris at fits |
Loose shaft/housing fit |
Correct tolerances; use anti-fretting paste |
|
Smearing |
Adhesive wear marks on balls |
Insufficient lubrication, rapid acceleration |
Verify grease; controlled run-up speed |
|
Seal Damage |
Grease leakage, increased noise |
Excess temperature, chemical attack |
Stay within -30 to +100°C; avoid incompatible chemicals |
Selecting the correct variant of the 6203 series bearing requires evaluating four key parameters. Use the decision framework below as your guide.
🏷️ Brand Equivalents: The 6203DU designation is specific to Japanese manufacturers (NSK, NTN, KOYO, NACHI). The equivalent from European/American manufacturers is 6203-2RS (SKF, FAG/Schaeffler, Timken). Both are dimensionally identical and fully interchangeable.
|
A: 'DU' is a seal designation used by Japanese bearing manufacturers (NSK, NTN, KOYO, NACHI) indicating a double-sided nitrile rubber contact seal. It is equivalent to '2RS' or '2RSH' used by European manufacturers like SKF and FAG. |
|
A: Yes — functionally and dimensionally identical. Both feature rubber contact seals on each side and are pre-greased from the factory. The different designation simply reflects regional naming conventions. They are fully interchangeable. |
|
A: The reference speed for the 6203DU with grease lubrication is 15,000 rpm. For applications exceeding this, consider the 6203DDU (low-friction seal) or 6203ZZ (metal shield). |
|
A: Key signs include: increased noise or vibration, elevated operating temperature, visible grease leakage from seals, rough or jerky rotation when spun by hand, or visible damage to seals, rings, or rolling elements. |
