A linear bearing that's failing doesn't always give you much warning.
Sometimes it starts with a subtle grinding sound at one end of the stroke.
Sometimes motion just gets stiff on cold mornings.
And sometimes it sounds completely fine right up until the carriage seizes mid-cycle and destroys your workpiece.
This guide covers the most common linear bearing failure modes, how to diagnose each one, and the clearest signals that it's time to replace rather than re-lubricate.
Why Linear Bearings Fail: The Big Picture
The vast majority of linear bearing failures trace back to four root causes:
Lubrication failure — insufficient lubrication, wrong lubricant type, or contaminated lubricant
Contamination — particles, chips, or debris entering the bearing and scoring the raceways
Overloading — running above rated capacity, or with shock loads the design didn't account for
Misalignment or improper mounting — rail or shaft not straight, flatness not achieved, carriages forced into a bind
SKF's Bearing Damage and Failure Analysis handbook is one of the most widely referenced guides in industrial maintenance. It consistently attributes 60–80% of premature bearing failures to lubrication-related problems. Everything else combined makes up the remainder.
That's actually good news: most linear bearing failures are preventable.
Noise Diagnosis: What Each Sound Tells You
1. Grinding or Crunching Throughout the Stroke
What it usually means:
Contamination. Metallic chips, abrasive dust, or debris has entered the ball circuit and is scoring the raceways. Once scoring starts, the debris it generates accelerates the damage — a self-reinforcing failure cycle.
2. Cyclical Clicking or Knocking
What it usually means:
One or more damaged balls in the recirculating circuit. A chipped or flat-spotted ball produces a click each time it passes through the load zone.

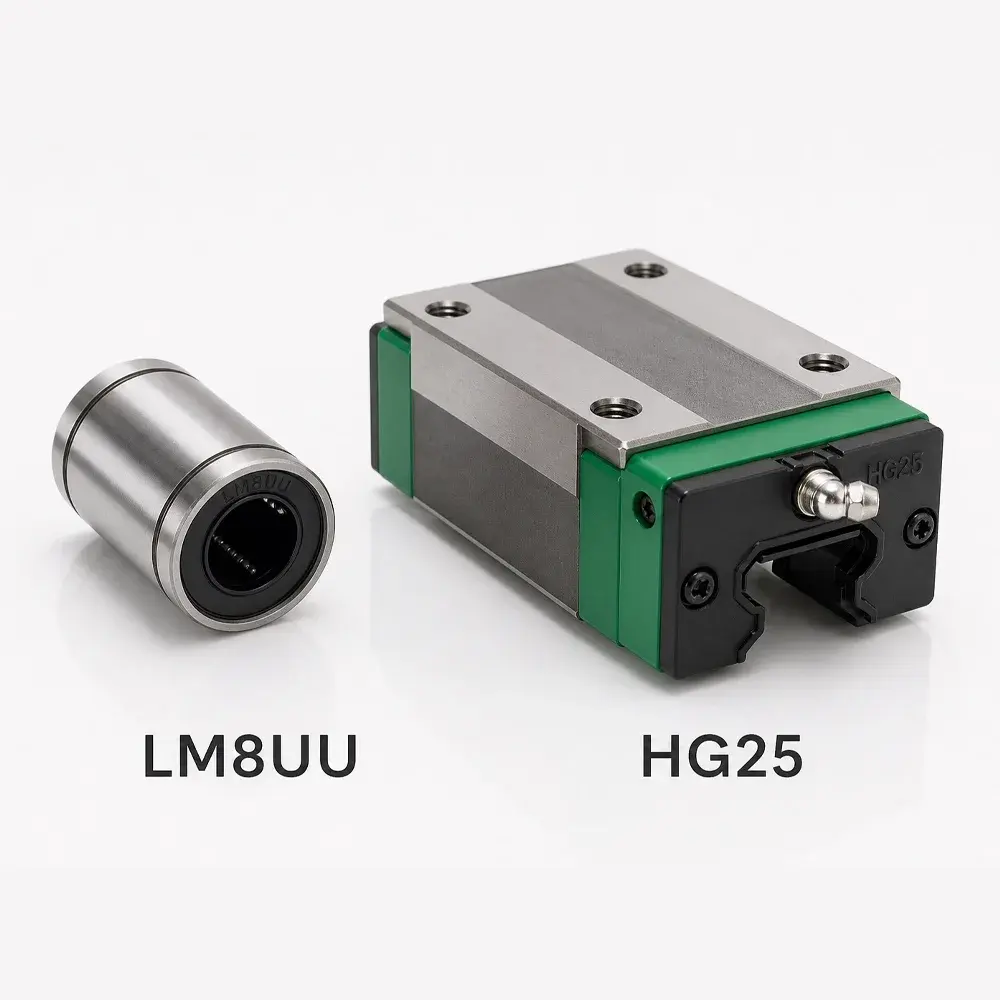

.webp)
3. Intermittent Noise or Stiffness at One End of Stroke
What it usually means:
Either localized rail damage (a ding, burr, or corrosion spot in one zone) or a bow in the rail or shaft at that location causing the carriage to bind.
4. Squealing or Squeaking
5. Rumbling at High Speed
What it usually means:
Raceway waviness — a periodic variation in raceway geometry from wear or a manufacturing defect. It can also indicate a damaged retainer causing uneven ball spacing.
Fix:
Raceway waviness is not correctable in the field. Replace the rail and carriage set.
6. Binding or Stiffness That Clears After Warmup
What it usually means:
Grease that's too viscous for the operating temperature. Standard NLGI #2 grease becomes noticeably stiff below 10°C. At -20°C, viscosity can increase by 10× or more depending on the base oil type.
Failure Mode Quick Reference
Linear Bearing Noise — Quick Diagnosis Reference
Grinding / crunching Continuous throughout stroke · like coarse gravel Cause: Contamination — debris in the ball circuit scoring raceways | Action: Inspect raceways. Flush + re-lube if caught early. Replace if scored. | HIGH |
Cyclical clicking Fixed interval · correlates with travel speed Cause: Damaged ball(s) — chipped or flat-spotted, clicking each pass | Action: Replace carriage. LM8UU/LM12UU/LM25UU: approx. $5–30. Profiled rail (25mm class): approx. $45–150. | MED |
One-end stiffness Rough near one end only · smooth mid-stroke Cause: Rail damage (burr/dent) or local bow causing bind | Action: Run dial indicator along rail. Burr → polish stone. Bent rail → replace. | MED |
Squealing Worst when cold · improves with warmup Cause: Insufficient lubrication — metal-to-metal stick-slip | Action: Lubricate immediately. Inspect for heat damage if ran dry. $10–20 grease vs $500+ seized bearing. | LOW→HIGH |
High-speed rumble Above ~0.5 m/s · frequency scales with speed Cause: Raceway waviness or damaged ball retainer | Replace rail + carriage. Not correctable in the field. | HIGH |
Cold stiffness Stiff at 0–15°C · normal after 15–30 min Cause: Grease too viscous — NLGI #2 stiffens below 10°C | Action: Switch to low-temp grease (-40°C to +150°C rated). Flush old grease first. | LOW |
Per SKF's
Bearing Damage and Failure Analysis
handbook — 60–80% of premature failures are lubrication-related and preventable.
Visual Inspection: What to Look For
Don't wait for noise. Regular visual inspection catches linear bearing problems earlier and at lower cost.
Raceway surface: Should be mirror-bright. Brown staining = corrosion starting. Blue or dark discoloration = heat damage from dry running. Pitting = fatigue or active corrosion.
Seal condition: End seals on profiled rail carriages should be intact and making light contact with the rail. Torn or missing seals allow contamination directly into the ball circuit.
Grease condition (when purged grease emerges at seals):
Clean gray or amber = healthy
Black = contaminated with metal particles
Dark brown = thermally degraded
White or foamy = water contamination
Carriage play: Mount a dial indicator perpendicular to the rail. Apply and release a 5 N load. Deflection should be <0.01 mm for a correctly preloaded precision carriage.
How to Lubricate a Linear Bearing (Step by Step)
For grease-lubricated round-shaft or profiled rail systems:
Wipe the exposed rail or shaft clean of old grease and any visible debris before adding new grease — never grease over contamination.
Locate the grease nipple (round-shaft pillow blocks) or lube port (profiled rail carriages). Most carriages have one on the leading face.
Use a manual or pneumatic grease gun with the manufacturer-specified grease — typically lithium-based NLGI Grade 2 for standard use, or a low-temperature grease below 10°C.
Apply grease slowly until you see fresh grease purge slightly at the seals. Over-greasing doesn't add benefit and can attract more dust in exposed environments.
Cycle the axis through its full stroke a few times to distribute the grease evenly across the raceway.
Wipe away excess purged grease so it doesn't collect debris.
For oil-lubricated high-speed systems, lubrication is usually automatic — a metered pump delivers 0.01–0.05 mL of oil per 1,000 mm of travel on a schedule set by the controller. Manual oiling isn't typically required; check your system's oil reservoir level instead.
Calculate your actual interval by travel distance, not the calendar — see the section below for the math.
Linear Bearing Lubrication Intervals: Concrete Numbers
This is where most maintenance programs fall short — they run on calendar time rather than actual travel distance.
THK recommendations for HSR series (standard operating conditions):
Grease: every 100 km of travel, or every 6 months — whichever comes first
Oil: continuous supply at 0.01–0.05 mL per 1,000 mm of travel
Compatible alternatives to THK HSR series following the same lubrication schedule are available — see our linear bearing range.
General recommendations for profiled rail systems (standard operating conditions):
Normal conditions: every 100 km of travel
Harsh environments (coolant, chips, abrasive dust): every 30–50 km
Always verify against your specific model's documentation — intervals vary by carriage size, seal type, and operating load.
How to calculate your lubrication interval:
Take a machine doing a 0.3 m stroke at 30 cycles/min over an 8-hour shift:
0.3 m × 2 × 30 cycles/min × 60 min/hr × 8 hr = 8,640 m = 8.64 km/day
At a 100 km re-grease interval, that's a lubrication event every 11.6 days — round down to every 10 days to stay ahead of the interval.
If your maintenance schedule says "monthly," and your machine runs like this, it is running severely under-lubricated.
Preventive Maintenance Schedule
Interval | Task |
|---|---|
Per calculated travel interval | Re-grease via lube port; verify purge at seals |
Monthly | Visual inspection of rail surface and seal condition |
Every 3 months | Check carriage play with dial indicator; inspect purged grease color |
Every 6 months | Full inspection: seals, rail surface, mounting fastener torque |
At any unusual noise | Immediate diagnosis per the section above |
At carriage replacement | Clean rail thoroughly; re-check rail flatness before installing new carriage |
When to Replace vs. When to Lubricate
This decision comes down to one question: has raceway damage occurred?
- The bearing is noisy but motion feels smooth (no grinding)
- Squeal disappears within 2–3 strokes of adding lubricant
- No visible scoring on the raceways
- Carriage play under a 5 N load is less than 0.01 mm
Linear bearing replacement is needed if:
Visible pitting, scoring, or chipping on raceways
Carriage play exceeds 0.02–0.05 mm under light load
Repeated lubrication hasn't resolved the noise
Heat discoloration (blue or brown) on raceways or balls
Any crack in the carriage body or rail
If you're replacing a worn ball-type carriage anyway, it's worth checking whether a roller-type carriage would better suit your load — see our Ball vs. Roller comparison for the tradeoffs.
On costs:
A replacement profiled rail carriage (25mm class) runs approximately $45–$150. Linear bearing rail replacement costs approximately $30–$100 per meter.
In a production environment running two shifts, even 2 hours of unplanned downtime typically exceeds those costs. The math almost always favors proactive replacement.
Brand also affects both price and how long a replacement lasts before it needs replacing again — see our linear bearing brand comparison if you're deciding between options.
Preventing Linear Bearing Failures: The Short List
Calculate your lubrication interval in km, not calendar days. Machines with short, fast strokes accumulate travel much faster than the calendar suggests.
Use the correct lubricant. Manufacturer-specified grease for standard use; ISO VG 68–100 oil for oil-lubricated systems; low-temperature grease for operation below 10°C.
Protect against contamination. Bellows covers, way wipers, and labyrinth seals are worth the cost in any environment with chips, coolant, or abrasive dust.
Verify mounting flatness at installation. Fifteen minutes with a dial indicator prevents months of unexplained positioning error. Flatness requirements are covered in our Pairing & Sizing Guide.
Act on early noise. A squealing bearing takes $10–$20 in grease and 10 minutes to fix. A seized bearing takes $500+ in parts and hours of lost production.
Keep a travel log per axis. Track kilometers, not machine hours. An axis doing 10 mm strokes at 60 cycles/min accumulates travel far faster than one doing 500 mm strokes at 5 cycles/min.
Frequently Asked Questions
What causes linear bearing noise?
The cause depends on the sound. Grinding throughout the stroke means contamination in the ball circuit. Cyclical clicking at a fixed interval points to a damaged ball. Squealing — especially when cold — is almost always insufficient lubrication. High-speed rumble indicates raceway waviness, which requires full replacement. See the noise diagnosis section above for confirmation steps and fixes for each failure mode.
How often should linear bearings be lubricated?
Calculate by travel distance, not calendar time. Leading manufacturers recommend re-greasing every 100 km under normal conditions, or every 30–50 km in harsh environments. A typical machine running a 0.3 m stroke at 30 cycles/min accumulates roughly 8.6 km per day — that's a lubrication event every 10 days, not monthly.
What lubricant should be used for a linear bearing?
Match the lubricant to the operating conditions, not just what's on hand. Standard-duty grease-lubricated systems use a lithium-based NLGI Grade 2 grease. Below 10°C, switch to a low-temperature grease rated to -40°C, since standard grease stiffens and can trigger the cold-start noise described above. High-speed automated systems typically run on ISO VG 68–100 oil delivered by a metered pump rather than grease. Avoid dry lubricants like PTFE or graphite powder on recirculating ball or roller bearings — they help sliding contact but do little for rolling elements and won't protect the raceway.
Can a linear bearing be repaired, or does it need replacing?
If the noise clears within a few strokes of adding lubricant and there is no visible scoring on the raceways, re-lubrication is sufficient. Replacement is needed once raceway damage has occurred — visible pitting, carriage play exceeding 0.02–0.05 mm under light load, or noise that persists after repeated lubrication. A replacement profiled rail carriage (25mm class) costs approximately $45–$150, almost always less than two hours of unplanned downtime.
Hearing something unusual from a bearing on your machine? Describe the noise — when in the stroke it occurs, what it sounds like, and what changed recently — in the comments and we'll help you diagnose it.
