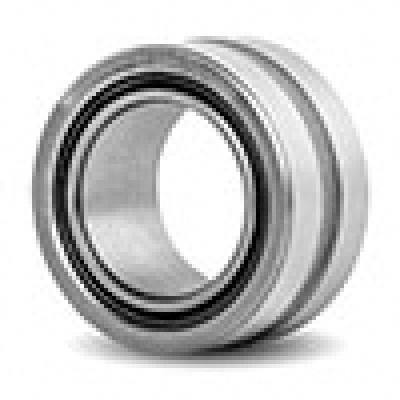

NA4826-XL
| Part Number | NA4826-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | Yes |
| Series | With Inner Ring |
| Bore Dia | 130 mm |
| Bore Dia Tolerance | -0.025mm to 0 |
| Outer Dia | 165 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Width | 35 mm |
| Width Tolerance | -0.25mm to 0 |
| Chamfer Dimension | 1.1 mm |
| F | 145 mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 30150 lbf |
| Static Radial Load | 69750 lbf |
| Max Speed (X1000 rpm) | 3.3 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 1810 g |
})
INTERCHANGE
The LILY bearing part series NA4826-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNA4826-XL
NA 4826
RNA 4826
NA 4826
RNA 4826
NA 4826
RNA 4826
NA 4826
RNA 4826
