NA4822-XL

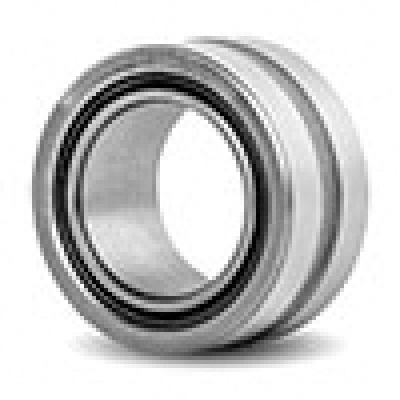

NA4822-XL Heavy Duty Needle Roller Bearings (Machined)
Part Number NA4822-XL
Brand: LILY
|
Equivalent: Schaeffler (INA)
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
Seal Type Open
Inner Ring Yes
Series With Inner Ring
Bore Dia 110 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 140 mm
Outer Dia Tolerance -0.018mm to 0
Width 30 mm
Width Tolerance -0.2mm to 0
Chamfer Dimension 1 mm
F 120 mm
Ring Material Steel
Cage Material Steel
Roller Material Steel
Dynamic Radial Load 23850 lbf
Static Radial Load 48600 lbf
Max Speed (X1000 rpm) 3.9
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight 1080 g
NA4822-XL Heavy Duty Needle Roller Bearings (Machined) cad drawing

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series NA4822-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNA4822-XL
NA 4822
RNA 4822
NA 4822
RNA 4822
NA 4822
RNA 4822
NA 4822
RNA 4822
