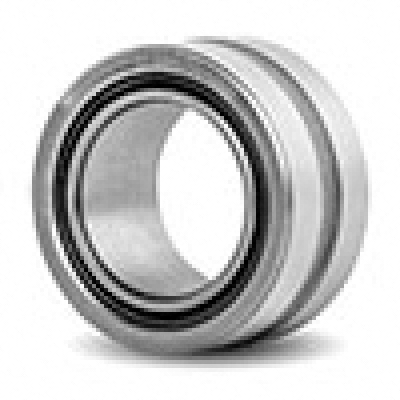

NA4828-XL
Part Number | NA4828-XL |
Brand: LILY | |
Equivalent: Schaeffler (INA) |
System of Measurement | Metric |
Bearing Type | Roller |
Roller Bearing Type | Needle |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Open |
Inner Ring | Yes |
Series | With Inner Ring |
Bore Dia | 140 mm |
Bore Dia Tolerance | -0.025mm to 0 |
Outer Dia | 175 mm |
Outer Dia Tolerance | -0.025mm to 0 |
Width | 35 mm |
Width Tolerance | -0.25mm to 0 |
Chamfer Dimension | 1.1 mm |
F | 155 mm |
Ring Material | Steel |
Cage Material | Steel |
Roller Material | Steel |
Dynamic Radial Load | 30600 lbf |
Static Radial Load | 73125 lbf |
Max Speed (X1000 rpm) | 3.1 |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | -20 to 110 °C |
RoHS | Compliant |
Weight | 1920 g |
INTERCHANGE
The LILY bearing part series NA4828-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNA4828-XL
NA 4828
RNA 4828
NA 4828
RNA 4828
NA 4828
RNA 4828
NA 4828
RNA 4828
