M224749D-M224712

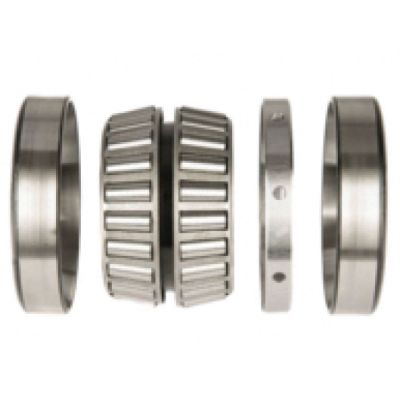

M224749D-M224712 TDI (Two-Row Double Inner Race) (Imperial)
M224749D-M224712 TDI (Two-Row Double Inner Race) (Imperial)
Price $ 0.00
Part Number M224749D-M224712
Type Bearing
Cone Part Number M224749D
Cup Part Number M224712
System of Measurement Inch
Bearing Type Roller
Roller Bearing Type Tapered Roller
For Load Direction Combined Radial and Thrust
Construction Double Row
Seal Type Open
Cups Type Standard
Series M224700
Bore Dia 4.75"
Bore Dia Tolerance +0.025" to 0
Outer Dia 6.875"
Outer Dia Tolerance +0.025" to 0
Double Cone Width 2.6875"
Double Cone Width Tolerance +0.076" to -0.254"
Cup Width 1.0938"
Cup Width Tolerance +0.051" to -0.254"
Bearing Width Across Cups 2.625"
Bearing Width Across Cups Tolerance +0.356" to-0.254"
Cone Backface ToClear Radius 0.03"
Cup Backface ToClear Radius 0.13"
Cup Frontface Backing Diameter 5.08"
Cup Backface Backing Diameter 6.34"
Dynamic Radial Load 95700 lbf
Ring Material 52100 Chrome Steel
Roller Material 52100 Chrome Steel
Cage Material Steel
Dynamic Radial Rating (One Row 90 million revolutions) 14200 lbf
Dynamic Thrust Rating (90 million revolutions) 8110 lbf
Dynamic Radial Rating (Two Row 90 million revolutions) 24800 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 12.5 lb
