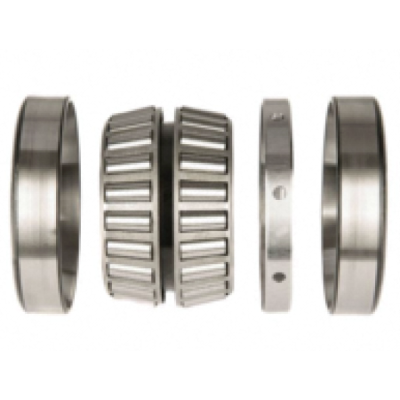

95474D-95912 TDI (Two-Row Double Inner Race) (Imperial)
95474D-95912 TDI (Two-Row Double Inner Race) (Imperial)
Price $ 0.00
Part Number 95474D-95912
Type Bearing
Cone Part Number 95474D
Cup Part Number 95912
System of Measurement Inch
Bearing Type Roller
Roller Bearing Type Tapered Roller
For Load Direction Combined Radial and Thrust
Construction Double Row
Seal Type Open
Cups Type Standard
Series 95000
Bore Dia 4.75"
Bore Dia Tolerance +0.025" to 0
Outer Dia 9.125"
Outer Dia Tolerance +0.025" to 0
Double Cone Width 6"
Double Cone Width Tolerance +0.076" to -0.254"
Cup Width 1.9375"
Cup Width Tolerance +0.051" to -0.254"
Bearing Width Across Cups 5.4999"
Bearing Width Across Cups Tolerance +0.356" to-0.254"
Cone Backface ToClear Radius 0.25"
Cup Backface ToClear Radius 0.13"
Cup Frontface Backing Diameter 5.87"
Cup Backface Backing Diameter 8.15"
Dynamic Radial Load 246000 lbf
Ring Material 52100 Chrome Steel
Roller Material 52100 Chrome Steel
Cage Material Steel
Dynamic Radial Rating (One Row 90 million revolutions) 36700 lbf
Dynamic Thrust Rating (90 million revolutions) 23200 lbf
Dynamic Radial Rating (Two Row 90 million revolutions) 63800 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 55.3 lb
