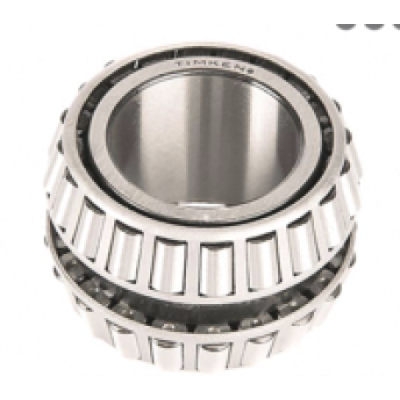

M224749D
| Part Number | M224749D |
| System of Measurement | Inch |
| Type | Cones |
| Bearing Part Number | M224749D-M224710 , M224749D-M224711 , M224749D-M224712 , M224749D-M224713A |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Double Row |
| Seal Type | Open |
| Series | M224700 |
| Bore Dia | 4.75" |
| Bore Dia Tolerance | +0.001" to 0 |
| Double Cone Width | 2.6875" |
| Double Cone Width Tolerance | +0.003" to -0.01 |
| Cone Backface ToClear Radius | 0.03" |
| Cone Frontface Backing Diameter | 5.08" |
| Cone Backface Backing Diameter | 5.08" |
| Cage Cone Frontface Clearance | 0.04" |
| Static Radial Load | 94900 lbf |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Rating(90 Million Revolutions) | 14200 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions) | 95700 lbf |
| Dynamic Radial Rating(1 Million Revolutions) | 54900 lbf |
| Dynamic Thrust Rating(90 Million Revolutions) | 8110 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions) | 24800 lbf |
| Heat Generation Factor(Rib Roller End)(G2) | 86.6 |
| Heat Generation Factor(Roller Raceway)(G1) | 279 |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
})
