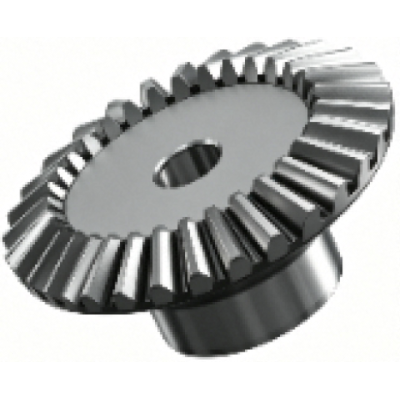

2515N13
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | CFBFNBD |
| System of Measurement | Inch |
| Gear Type | Bevel |
| Component | Gear |
| Bore Type | Round |
| Face Width | 0.35" |
| Diameter Pitch | 16 |
| Pressure Angle | 20 ° |
| Speed Ratio | 2:1 |
| Number Of Teeth | 32 |
| Pitch Diameter | 2" |
| OD | 2.03" |
| Overall Width | 0.871" |
| Bore Dia | 0.5" |
| Mounting Distance (A) | 1.188" |
| Hub Diameter | 1.125" |
| Hub Width | 0.5" |
| Material | 1144 Carbon Steel |
| Teeth Heat Treatment | Not Hardened |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
Design Features of CFBFNBD Gear
Designed according to imperial (inch) standards such as diametral pitch and pressure angle for compatibility with inch-system components. Bevel gears have conical pitch surfaces allowing torque transfer between intersecting shafts, typically at 90°. Made from steel, stainless steel, or hardened alloys to provide durability and wear resistance under load. CFBFNBD hub diameter is 1.125". Its face width is 0.35". Its overall width is 0.871". Available with straight teeth (simple design), spiral teeth (smooth and quiet operation), or zerol teeth (hybrid design with reduced noise).
What Benefits Can CFBFNBD Gear Provide?
- Precise Angular Power Transmission: Efficiently transmit torque between intersecting shafts, commonly at 90°, with accurate alignment.
- Durable and Reliable Performance: Constructed from high-strength metals like steel for long service life and resistance to wear.
- Smooth and Quiet Operation: Spiral and zerol tooth designs reduce noise and vibration, ideal for high-speed or precision use.
- Compatibility with Imperial Systems: Designed to imperial standards for seamless integration into inch-based machinery and assemblies.
What Can CFBFNBD Gear Be Used for?
- Industrial Gearboxes: Used to transmit power between intersecting shafts in machinery such as mixers, conveyors, and reducers.
- Automotive and Heavy Equipment: Found in differentials, steering gear assemblies, and drivetrains requiring precise right-angle torque transfer.
- Robotics and Automation: Enable compact, accurate angular motion in robotic joints and automated machinery built to imperial standards.
- Power Tools and Mechanical Devices: Integrated into drills, lathes, and other tools needing reliable right-angle gear drives.
