Metal Bevel Gears
36 Products
Metric Metal Bevel Gears
These gears are precision-engineered for efficient and reliable power transmission in various mechanical applications.
Part Number
Face Width
Module
Pressure Angle
Speed Ratio
Number Of Teeth
Pitch Diameter
OD
Overall Width
Bore Dia
Mounting Distance (A)
Hub Diameter
Hub Width
Material
Price
>
Part Number
Face Width
Module
Pressure Angle
Speed Ratio
Number Of Teeth
Pitch Diameter
OD
Overall Width
Bore Dia
Mounting Distance (A)
Hub Diameter
Hub Width
Material
Price
>
CFBFNDDG
6 mm
1
20 °
2:1
40
40 mm
41 mm
15 mm
8 mm
22 mm
25 mm
8 mm
Black-Oxide 1045 Carbon Steel
$25.29
CFBFNDCF
8 mm
1.5
20 °
2:1
30
45 mm
46 mm
18 mm
8 mm
25 mm
25 mm
9 mm
Black-Oxide 1045 Carbon Steel
$24.13
CFBFNDDH
6 mm
1
20 °
3:1
45
45 mm
45 mm
12 mm
8 mm
17 mm
30 mm
5 mm
Black-Oxide 1045 Carbon Steel
$24.91
CFBFNDCJ
11 mm
1.5
20 °
5:2
45
68 mm
68 mm
21 mm
10 mm
30 mm
36 mm
10 mm
Black-Oxide 1045 Carbon Steel
$42.70
CFBFNDGG
11 mm
2
20 °
3:2
30
60 mm
62 mm
27 mm
10 mm
40 mm
35 mm
15 mm
Black-Oxide 1045 Carbon Steel
$32.35
CFBFNDBE
8 mm
1.25
20 °
2:1
40
50 mm
51 mm
19 mm
10 mm
27 mm
32 mm
10 mm
Black-Oxide 1045 Carbon Steel
$26.09
CFBFNDCI
10 mm
1.5
20 °
3:1
45
68 mm
68 mm
20 mm
10 mm
28 mm
36 mm
11 mm
Black-Oxide 1045 Carbon Steel
$38.38
CFBFNDGF
11 mm
2
20 °
2:1
30
60 mm
61 mm
22 mm
10 mm
31 mm
30 mm
10 mm
Black-Oxide 1045 Carbon Steel
$32.49
CFBFNDGH
15 mm
2
20 °
2:1
40
80 mm
81 mm
32 mm
12 mm
45 mm
40 mm
18 mm
Black-Oxide 1045 Carbon Steel
$41.12
CFBFNDEJ
15 mm
2.5
20 °
3:2
30
75 mm
77 mm
34 mm
15 mm
50 mm
45 mm
18 mm
Black-Oxide 1045 Carbon Steel
$43.36
CFBFNDEI
15 mm
2.5
20 °
2:1
30
75 mm
76 mm
29 mm
15 mm
40 mm
40 mm
15 mm
Black-Oxide 1045 Carbon Steel
$37.66
CFBFNDFF
20 mm
2.5
20 °
5:1
60
150 mm
151 mm
40 mm
20 mm
50 mm
70 mm
20 mm
Black-Oxide 1045 Carbon Steel
$117.50

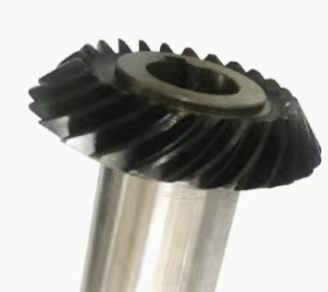

Metric Shaft-Mounted Pinions
Their precision, durability, and compatibility with metric-based systems make them ideal for numerous industries.
Part Number
Bore Dia
Face Width
Module
Pressure Angle
Speed Ratio
Number Of Teeth
Pitch Diameter
OD
Overall Width
Shaft Length
Mounting Distance (B)
Hub Diameter
Hub Width
Material
Price
>
Part Number
Bore Dia
Face Width
Module
Pressure Angle
Speed Ratio
Number Of Teeth
Pitch Diameter
OD
Overall Width
Shaft Length
Mounting Distance (B)
Hub Diameter
Hub Width
Material
Price
>
CFBFNDDJ
20.2 mm
20 mm
2.5
20 °
5:1
12
30 mm
37 mm
143 mm
115 mm
83 mm
25 mm
8 mm
Black-Oxide 1045 Carbon Steel
$48.66
Inch Metal Bevel Gears
Essential for various mechanical systems requiring precise and efficient power transmission.
Part Number
Face Width
Diameter Pitch
Pressure Angle
Speed Ratio
Number Of Teeth
Pitch Diameter
OD
Overall Width
Bore Dia
Mounting Distance (A)
Hub Diameter
Hub Width
Material
Price
>
Part Number
Face Width
Diameter Pitch
Pressure Angle
Speed Ratio
Number Of Teeth
Pitch Diameter
OD
Overall Width
Bore Dia
Mounting Distance (A)
Hub Diameter
Hub Width
Material
Price
>
CFBFNBB
0.19"
16
20 °
2:1
24
1.5"
1.54"
0.741"
0.5"
1"
1"
0.448"
1144 Carbon Steel
$42.04
CFBFNBD
0.35"
16
20 °
2:1
32
2"
2.03"
0.871"
0.5"
1.188"
1.125"
0.5"
1144 Carbon Steel
$49.90
CFBFNBF
0.42"
16
20 °
3:1
48
3"
3.02"
0.973"
0.63"
1.313"
1.5"
0.563"
1144 Carbon Steel
$67.65
CFBFNBH
0.48"
16
20 °
4:1
64
4"
4.02"
1.019"
0.63"
1.375"
2.25"
0.563"
1144 Carbon Steel
$87.70
CFBFNBJ
0.71"
10
20 °
2:1
40
4"
4.06"
1.857"
0.88"
2.5"
3"
1.188"
1144 Carbon Steel
$138.31
CFBFNCC
0.78"
10
20 °
3:1
60
6"
6.04"
2.04"
1"
2.75"
3"
1.375"
1144 Carbon Steel
$199.32
Inch Metal Bevel Pinions
Their precision, durability, and compatibility with inch-based systems make them ideal for numerous industries.
Part Number
Face Width
Diameter Pitch
Pressure Angle
Speed Ratio
Number Of Teeth
Pitch Diameter
OD
Overall Width
Bore Dia
Mounting Distance (B)
Hub Diameter
Hub Width
Material
Price
>
Part Number
Face Width
Diameter Pitch
Pressure Angle
Speed Ratio
Number Of Teeth
Pitch Diameter
OD
Overall Width
Bore Dia
Mounting Distance (B)
Hub Diameter
Hub Width
Material
Price
>
CFBFNBC
0.19"
16
20 °
2:1
12
0.75"
0.9"
0.583"
0.38"
1.125"
0.656"
0.344"
1144 Carbon Steel
$25.01
CFBFNBE
0.35"
16
20 °
2:1
16
1"
1.15"
0.842"
0.38"
1.5"
0.813"
0.453"
1144 Carbon Steel
$22.95
CFBFNBG
0.42"
16
20 °
3:1
16
1"
1.17"
0.927"
0.44"
2"
0.875"
0.474"
1144 Carbon Steel
$20.61
CFBFNBI
0.48"
16
20 °
4:1
16
1"
1.17"
0.989"
0.5"
2.5"
0.813"
0.438"
1144 Carbon Steel
$25.26
CFBFNCB
0.71"
10
20 °
2:1
20
2"
2.24"
1.802"
0.75"
3.125"
1.75"
1.062"
1144 Carbon Steel
$73.15
CFBFNCD
0.78"
10
20 °
3:1
20
2"
2.27"
2.161"
0.88"
4.375"
1.75"
1.333"
1144 Carbon Steel
$84.10
Metric Metal Bevel Pinions
Their precision, durability, and compatibility with metric-based systems make them ideal for numerous industries.
Part Number
Face Width
Module
Pressure Angle
Speed Ratio
Number Of Teeth
Pitch Diameter
OD
Overall Width
Bore Dia
Mounting Distance (B)
Hub Diameter
Hub Width
Material
Price
>
Part Number
Face Width
Module
Pressure Angle
Speed Ratio
Number Of Teeth
Pitch Diameter
OD
Overall Width
Bore Dia
Mounting Distance (B)
Hub Diameter
Hub Width
Material
Price
>
CFBFNDBI
8 mm
1.5
20 °
2:1
15
23 mm
26 mm
17 mm
6 mm
32 mm
16 mm
8 mm
Black-Oxide 1045 Carbon Steel
$13.99
CFBFNDDD
6 mm
1
20 °
3:1
15
15 mm
18 mm
13 mm
6 mm
29 mm
12 mm
6 mm
Black-Oxide 1045 Carbon Steel
$12.64
CFBFNDDF
6 mm
1
20 °
2:1
20
20 mm
22 mm
14 mm
6 mm
28 mm
16 mm
7 mm
Black-Oxide 1045 Carbon Steel
$14.92
CFBFNDBD
8 mm
1.25
20 °
2:1
20
25 mm
28 mm
19 mm
8 mm
36 mm
22 mm
10 mm
Black-Oxide 1045 Carbon Steel
$15.85
CFBFNDCC
11 mm
1.5
20 °
5:2
18
27 mm
31 mm
22 mm
8 mm
45 mm
23 mm
10 mm
Black-Oxide 1045 Carbon Steel
$16.82
CFBFNDBJ
10 mm
1.5
20 °
3:1
15
23 mm
27 mm
23 mm
8 mm
47 mm
18 mm
13 mm
Black-Oxide 1045 Carbon Steel
$14.27
CFBFNDFI
11 mm
2
20 °
2:1
15
30 mm
35 mm
21 mm
8 mm
40 mm
22 mm
8 mm
Black-Oxide 1045 Carbon Steel
$16.74
CFBFNDGD
11 mm
2
20 °
3:2
20
40 mm
44 mm
25 mm
10 mm
45 mm
30 mm
12 mm
Black-Oxide 1045 Carbon Steel
$21.47
CFBFNDEB
15 mm
2.5
20 °
2:1
15
38 mm
44 mm
32 mm
12 mm
55 mm
30 mm
16 mm
Black-Oxide 1045 Carbon Steel
$21.08
CFBFNDGE
15 mm
2
20 °
2:1
20
40 mm
45 mm
34 mm
12 mm
60 mm
32 mm
18 mm
Black-Oxide 1045 Carbon Steel
$22.54
CFBFNDEG
15 mm
2.5
20 °
3:2
20
50 mm
55 mm
31 mm
12 mm
55 mm
35 mm
13 mm
Black-Oxide 1045 Carbon Steel
$27.05
