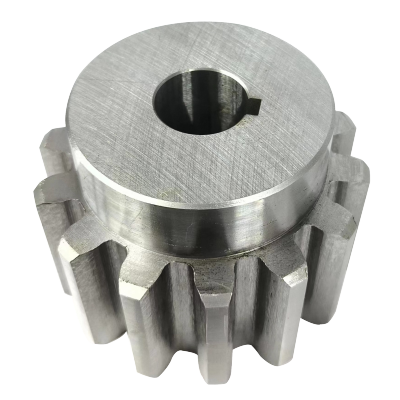

39200003
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | 39200003 |
Brand: LILY  |
Interchangeable With: KAYDON |
| System of Measurement | Inch |
| Series | Mating Pinions |
| Approximate Weight (lb) | 11.4 lb |
| Outside Diameter (Do1) | 5.2" |
| Outside Diameter (Do1) Tolerance | -0.01" to 0 |
| Length of Pinion (L1) | 2.88" |
| Length of Pinion (L1) Tolerances | ±0.015" |
| Face Width (b1) | 2" |
| Face Width (b1) Tolerance | ±0.015" |
| Pitch Diameter (D1) | 4.667" |
| Stock Bore (Di1) | 1.25" |
| Stock Bore (Di1) Tolerances | 0 to +0.002" |
| Square Key Size, Nominal (w) | 5/16" |
| Diameter of Hub (Dr1) | 3.88" |
| Number of Teeth (z1) | 14 |
| Diametral Pitch (Pd) (Mating Pinions) | 3 |
| Tooth Form | Stub Involute Spur Gear (Ref. ASA B6.1-1932) |
