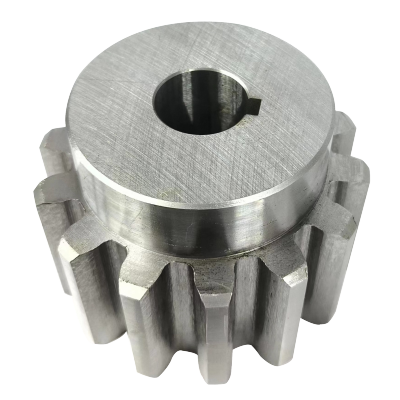

39200002
| Part Number | 39200002 |
Brand: LILY  | |
Equivalent: KAYDON |
| System of Measurement | Inch |
| Series | Mating Pinions |
| Approximate Weight (lb) | 10 lb |
| Outside Diameter (Do1) | 4.65" |
| Outside Diameter (Do1) Tolerance | -0.01" to 0 |
| Length of Pinion (L1) | 2.88" |
| Length of Pinion (L1) Tolerances | ±0.015" |
| Face Width (b1) | 2" |
| Face Width (b1) Tolerance | ±0.015" |
| Pitch Diameter (D1) | 4.25" |
| Stock Bore (Di1) | 1" |
| Stock Bore (Di1) Tolerances | 0 to +0.002" |
| Square Key Size, Nominal (w) | 1/4" |
| Diameter of Hub (Dr1) | 3.63" |
| Number of Teeth (z1) | 17 |
| Diametral Pitch (Pd) (Mating Pinions) | 4 |
| Tooth Form | Stub Involute Spur Gear (Ref. ASA B6.1-1932) |
})
