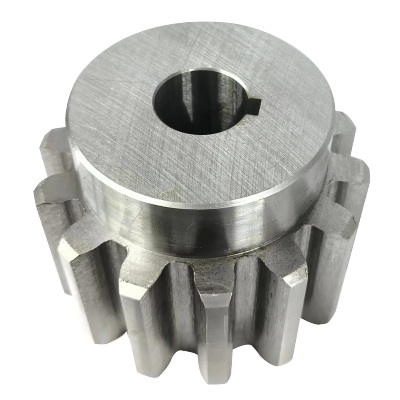

39200001
Part Number | 39200001 |
Brand: LILY | |
Equivalent: KAYDON |
System of Measurement | Inch |
Series | Mating Pinions |
Approximate Weight (lb) | 6.4 lb |
Outside Diameter (Do1) | 3.9" |
Outside Diameter (Do1) Tolerance | -0.01" to 0 |
Length of Pinion (L1) | 2.88" |
Length of Pinion (L1) Tolerances | ±0.015" |
Face Width (b1) | 2" |
Face Width (b1) Tolerance | ±0.015" |
Pitch Diameter (D1) | 3.5" |
Stock Bore (Di1) | 1" |
Stock Bore (Di1) Tolerances | 0 to +0.002" |
Square Key Size, Nominal (w) | 1/4" |
Diameter of Hub (Dr1) | 2.88" |
Number of Teeth (z1) | 14 |
Diametral Pitch (Pd) (Mating Pinions) | 4 |
Tooth Form | Stub Involute Spur Gear (Ref. ASA B6.1-1932) |
