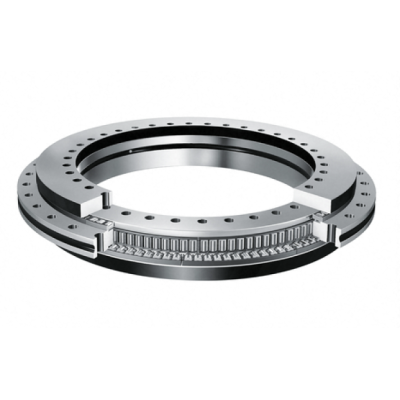

YRTS395
YRTS395
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | YRTS395 |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
| System of Measurement | Metric |
| Bore Dia | 395 mm |
| Bore Dia Tolerance | -0.023mm to 0 |
| Outer Dia | 525 mm |
| Outer Dia Tolerance | -0.028mm to 0 |
| Height | 65 mm |
| Height Contact Face Outer Ring(H1) | 42.5 mm |
| Height Contact Face Outer Ring(H1) Tolerance | -0.07 to 0.06 mm |
| Height Contact Face Outer Ring(H2) | 22.5 mm |
| Maximum Diameter Inner Ring | 487.7 mm |
| Width Of Outer Ring | 20 mm |
| Dynamic Radial Load | 121000 N |
| Static Radial Load | 390000 N |
| Dynamic Axial Load | 214000 N |
| Static Axial Load | 1540000 N |
| Weight | 33 kg |
| Max Speed (X1000 rpm) | 0.65 |
| Pitch Circle Diameter Fixing Holes In Outer Ring | 415 mm |
| Pitch Circle Diameter Fixing Holes In Inner Ring | 505 mm |
| Fixing Holes Diameter Inner Ring | 9.3 mm |
| Number Of Fixing Holes Inner Ring | 46 |
| Counterbore Diameter Of Fixing Holes | 15 mm |
| Counterbore Depth Of Fixing Holes | 8.2 mm |
| Fixing Holes Diameter Outer Ring | 9.3 mm |
| Number Of Fixing Holes Outer Ring | 45 |
| Pitch Quantity And Separation Angle | 48 x 7.5° |
| Threaded Extraction Hole | M12 |
| Number of Extraction Threads | 3 |
| Screw Tightening Torque | 34 Nm |
| Number Of Retaining Screws | 2 |
| Axial and radial runout | 6 µm |
| Axial Rigidity Of Bearing Position | 7800 N/µm |
| Radial Rigidity Of Bearing Position | 2000 N/µm |
| Tilting Rigidity Of Bearing Position | 195000 Nm/mrad |
| Axial Rigidity Of Rolling Element Set | 23400 N/µm |
| Radial Rigidity Of Rolling Element Set | 8700 N/µm |
| Tilting Rigidity Of Rolling Element Set | 582000 Nm/mrad |
| Mass Moment Of Inertia For Rotating Outer Ring | 4254 kg * cm^2 |
| Mass Moment Of Inertia For Rotating Inner Ring | 8352 kg * cm^2 |
| Operating Temperature Tolerance | -30 ° to 120 °C |
