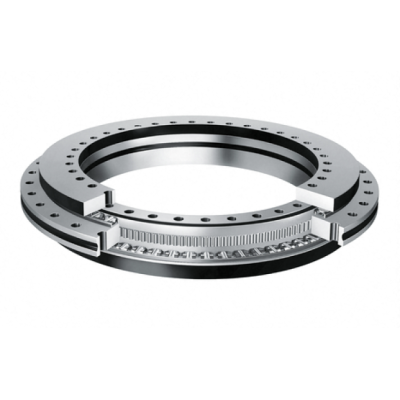

YRT50
YRT50
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
| Part Number | YRT50 |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
| System of Measurement | Metric |
| Bore Dia | 50 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 126 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Height | 30 mm |
| Height Contact Face Outer Ring(H1) | 20 mm |
| Height Contact Face Outer Ring(H1) Tolerance | -0.025 to 0.025 mm |
| Height Contact Face Outer Ring(H2) | 10 mm |
| Height Contact Face Outer Ring(H2) Tolerance | -0.02 to 0.02 mm |
| Maximum Diameter Inner Ring | 105 mm |
| Width Of Outer Ring | 10 mm |
| Dynamic Radial Load | 28500 N |
| Static Radial Load | 49500 N |
| Dynamic Axial Load | 56000 N |
| Static Axial Load | 280000 N |
| Weight | 1.6 kg |
| Max Speed (X1000 rpm) | 0.44 |
| Bearing friction torque at 5 1/min | 2.5 Nm |
| Pitch Circle Diameter Fixing Holes In Outer Ring | 63 mm |
| Pitch Circle Diameter Fixing Holes In Inner Ring | 116 mm |
| Fixing Holes Diameter Inner Ring | 5.6 mm |
| Number Of Fixing Holes Inner Ring | 10 |
| Fixing Holes Diameter Outer Ring | 5.6 mm |
| Number Of Fixing Holes Outer Ring | 12 |
| Pitch Quantity And Separation Angle | 12 x 30° |
| Screw Tightening Torque | 8.5 Nm |
| Number Of Retaining Screws | 2 |
| Axial and radial runout | 2 µm |
| Axial Rigidity Of Bearing Position | 1300 N/µm |
| Radial Rigidity Of Bearing Position | 1100 N/µm |
| Tilting Rigidity Of Bearing Position | 1250 Nm/mrad |
| Axial Rigidity Of Rolling Element Set | 6200 N/µm |
| Radial Rigidity Of Rolling Element Set | 1500 N/µm |
| Tilting Rigidity Of Rolling Element Set | 5900 Nm/mrad |
| Operating Temperature Tolerance | -30 ° to 120 °C |
