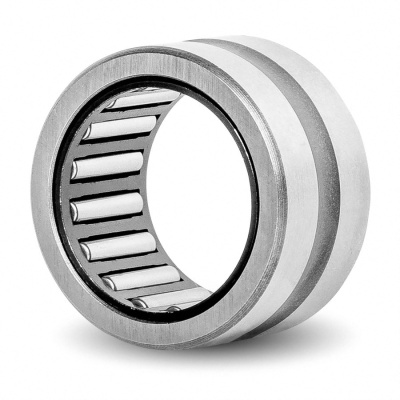

RNA4868-XL
Part Number | RNA4868-XL |
Brand: LILY | |
Equivalent: Schaeffler (INA) |
System of Measurement | Metric |
Bearing Type | Roller |
Roller Bearing Type | Needle |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Open |
Inner Ring | No |
Series | Without Inner Ring |
Bore Dia | 370 mm |
Bore Dia Tolerance | 0.062mm to 0.098mm |
Outer Dia | 420 mm |
Outer Dia Tolerance | -0.045mm to 0 |
Width | 80 mm |
Width Tolerance | -0.4mm to 0 |
Chamfer Dimension | 2.1mm |
Ring Material | Steel |
Cage Material | Steel |
Roller Material | Steel |
Dynamic Radial Load | 164250 lbf |
Static Radial Load | 436500 lbf |
Max Speed (X1000 rpm) | 1.3 |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | -20 to 110 °C |
RoHS | Compliant |
Weight | 14000 g |
INTERCHANGE
The LILY bearing part series RNA4868-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LRNA4868-XL
NA 4868
RNA 4868
NA 4868
RNA 4868
NA 4868
RNA 4868
NA 4868
RNA 4868
