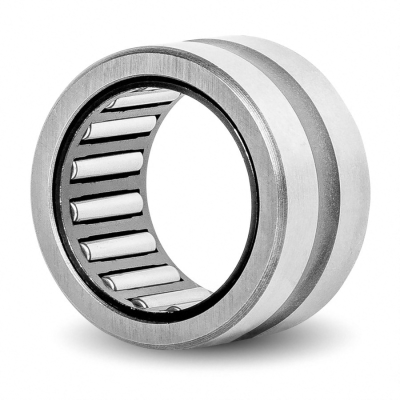

RNA4860-XL
Part Number | RNA4860-XL |
Brand: LILY | |
Equivalent: Schaeffler (INA) |
System of Measurement | Metric |
Bearing Type | Roller |
Roller Bearing Type | Needle |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Open |
Inner Ring | No |
Series | Without Inner Ring |
Bore Dia | 330 mm |
Bore Dia Tolerance | 0.062mm to 0.098mm |
Outer Dia | 380 mm |
Outer Dia Tolerance | -0.04mm to 0 |
Width | 80 mm |
Width Tolerance | -0.4mm to 0 |
Chamfer Dimension | 2.1mm |
Ring Material | Steel |
Cage Material | Steel |
Roller Material | Steel |
Dynamic Radial Load | 157500 lbf |
Static Radial Load | 398250 lbf |
Max Speed (X1000 rpm) | 1.4 |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | -20 to 110 °C |
RoHS | Compliant |
Weight | 12700 g |
INTERCHANGE
The LILY bearing part series RNA4860-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LRNA4860-XL
NA 4860
RNA 4860
NA 4860
RNA 4860
NA 4860
RNA 4860
NA 4860
RNA 4860
